Remove/Install Hinge Of Liftgate - AR72.20-P-2656LW
Model 205.2
Model 213.2
Model 253.1/9
Model 293

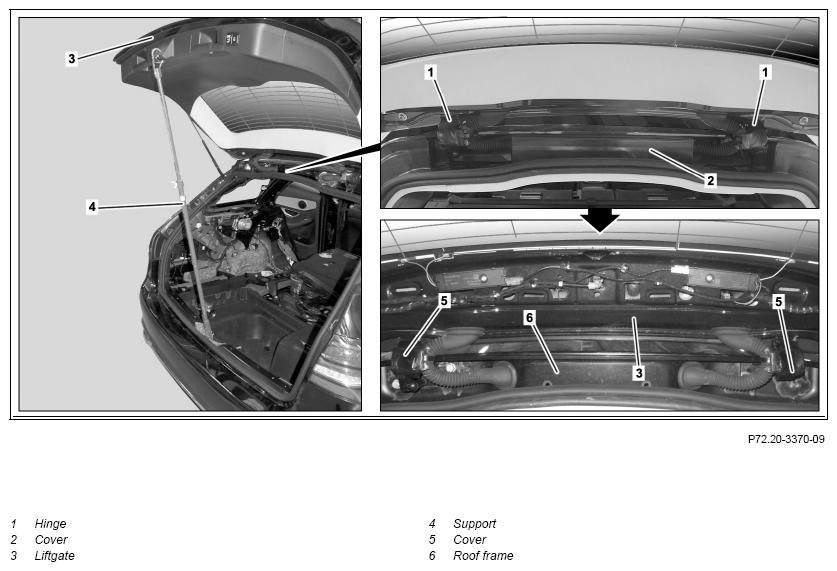

Shown on model 205.2 with code 890 (EASY-PACK liftgate)

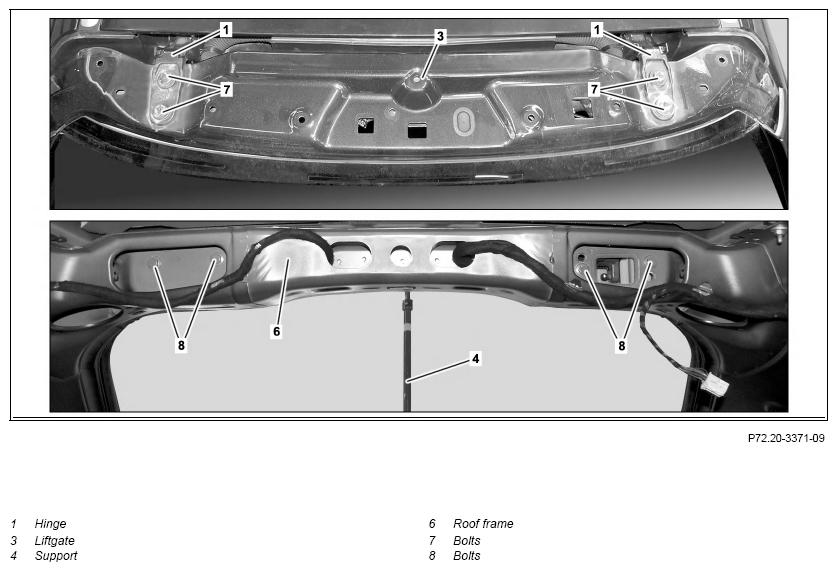

Shown with CODE 890 (EASY-PACK liftgate)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove | |||
| 1 | Remove roof spoiler with center brake lamp. | Model 205.2, 253.1/9 Model 293 |
AR82.10-P-5375LWS |
| Model 213.2 | AR82.10-P-5376LWT | ||
| 2 | Remove headliner. | AR68.30-P-4300LWS | |
| 3 | Unclip cover (2) and remove. | ||
| 4 | Remove liftgate control drive unit. | If the left hinge (1) is removed. | |
| Model 205.2, 213.2, 253.1/9, 293 with code 890 (EASY-PACK-tailgate) | AR72.29-P-5590LW | ||
| 5 | Secure liftgate (3) as shown with support (4). | Fig 1 | |
| 6 | Remove cover (5) from hinge (1). | ||
| 7 | Mark installation position of the hinge (1) on roof frame (6) and on the liftgate (3). | ||
| 8 | Remove screws (7) from the liftgate (3). | Remove each hinge (1) separately only with liftgate (3) installed and support (4) attached. If both hinges (1) are to be removed, the second hinge (1) should only be removed after installing the first hinge (1). Otherwise the liftgate (3) can be damaged. |
|
| 9 | Remove screws (8) and remove hinge (1). | ||
| Install | |||
| 10 | Align hinges (1) according to the markings on the roof frame (6) and tighten screws (8). | *BA72.20-P-1001-02N | |
| 11 | Align hinge (1) according to the markings on the liftgate (3) and tighten screws (7) slightly by hand. | ||
| 12 | Install liftgate control drive unit. | If left hinge (1) is removed. | |
| Model 205.2, 213.2, 253.1/9, 293 with code 890 (EASY-PACK-tailgate) |
AR72.29-P-5590LW | ||
| 13 | Remove support (4). | ||
| 14 | Adjust tailgate (3). | Model 205.2, 213.2, 253.1/9 | AR72.20-P-0002LW |
| Model 293 | AR72.20-P-0002EQ | ||
| 15 | Attach cover (5) to left and right hinge (1). | ||
| 16 | Install cover (2). | ||
| 17 | Install headliner. | AR68.30-P-4300LWS | |
| 18 | Install roof spoiler with center brake lamp. | Model 205.2, 253.1/9, 293 | AR82.10-P-5375LWS |
| Model 213.2 | AR82.10-P-5376LWT |
LIFTGATE
| Number | Designation | Model 205.2 | Model 213.2 | |
|---|---|---|---|---|
| BA72.20-P-1001-02N | Bolt, hinge for liftgate to roof frame | Nm | 40 | 40 |
LIFTGATE
| Number | Designation | Model 253 | Model 293 | |
|---|---|---|---|---|
| BA72.20-P-1001-02N | Bolt, hinge for liftgate to roof frame | Nm | 40 | 40 |
