Adjust Liftgate - AR72.20-P-0002LW

Model 205.2

Model 213.2

Model 253.1/9

Shown on MODEL 205.2

G12941087Courtesy of MERCEDES-BENZ USA

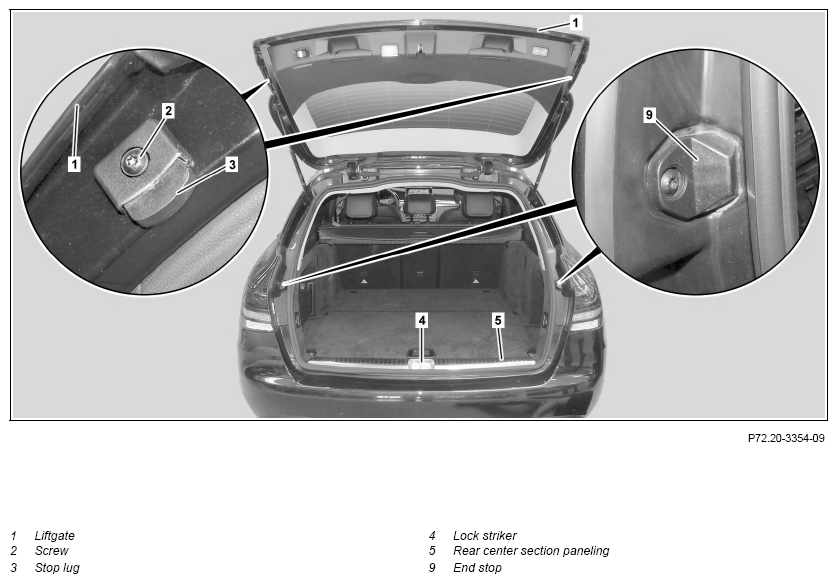

G12941088Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.2

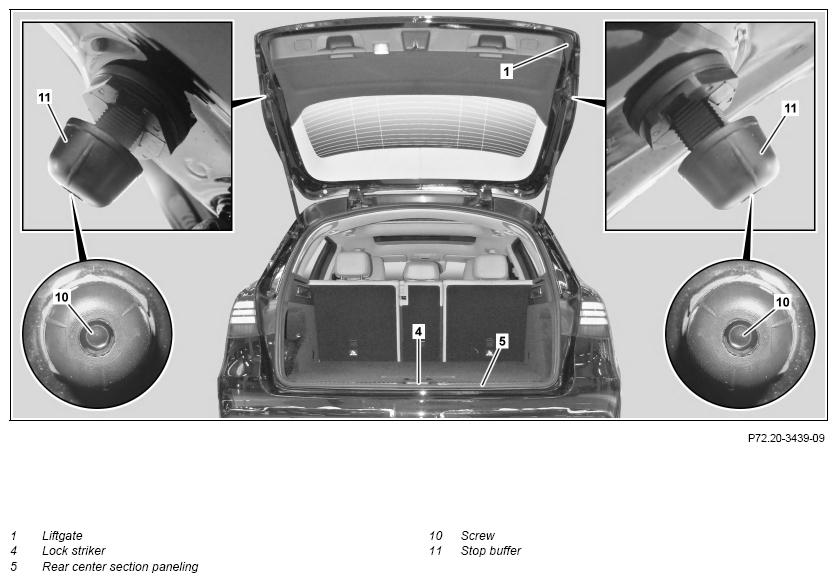

G12941089Courtesy of MERCEDES-BENZ USA

Shown on model 253.9

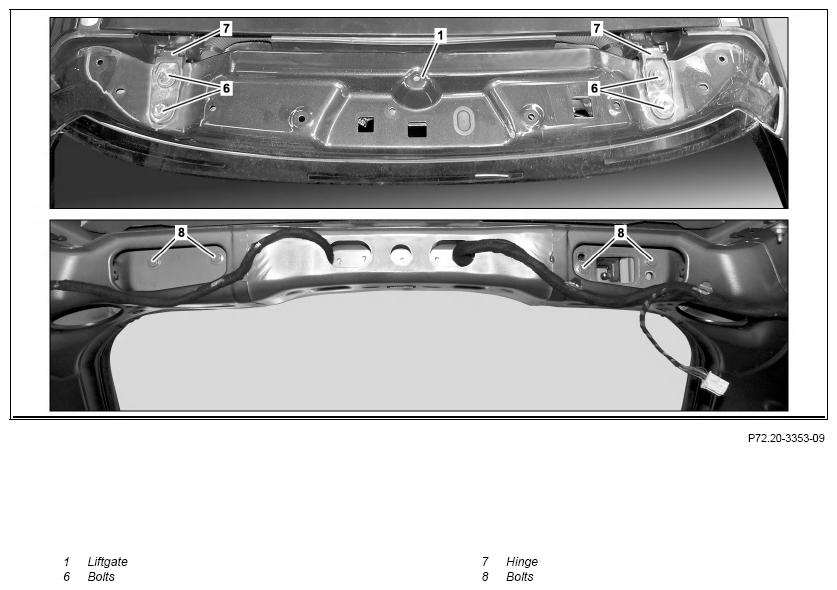

G12941090Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.2

WARNING Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
  Notes on HANDS-FREE ACCESS   AH80.61-P-0001-01A
INSPECT Check
1 Check gap dimensions at liftgate (1). Model 205.2, 253.1/9 AR60.00-P-0700-01LW
    Model 213.2 AR60.00-P-0700-01LWE
    Model 205.2 Roof to rear spoiler BE60.00-P-1019-01BB
    Model 205.2 Sidewall to rear spoiler BE60.00-P-1020-01BB
    Model 205.2 Sidewall to liftgate BE60.00-P-1021-01BB
    Model 205.2 Outside of tail lamp to inside of taillamp BE60.00-P-1022-01BB
    Model 205.2 Center of liftgate to rear bumper BE60.00-P-1023-01BB
    Model 205.2 Outside of liftgate to rear bumper BE60.00-P-1024-01BB
    Model 213.2 Roof to rear spoiler BE60.00-P-1017-01GA
    Model 213.2 Sidewall to rear spoiler BE60.00-P-1018-01GA
    Model 213.2 Center of liftgate to rear bumper BE60.00-P-1019-01GA
    Model 213.2 Outside of liftgate to rear bumper BE60.00-P-1020-01GA
    Model 213.2 Sidewall to liftgate BE60.00-P-1021-01GA
    Model 213.2 Outside of taillamp to inside of taillamp BE60.00-P-1022-01GA
    Model 253.1/9 Roof to rear spoiler/liftgate *BE60.00-P-1012-01FA
    Model 253.1/9 Sidewall to liftgate *BE60.00-P-1013-01FA
    Model 253.1/9 Outside of taillamp to inside of taillamp *BE60.00-P-1014-01FA
    Model 253.1/9 Center of liftgate to rear bumper *BE60.00-P-1015-01FA
    Model 253.1/9 Outside of liftgate to rear bumper *BE60.00-P-1016-01FA
    SPECIAL TOOL Feeler gauge Fig 1
REMOVING Remove
2.1 Loosen screws (2) and completely press back stop lugs (3). Model 205.2, 213.2
2.2 Loosen screws (10) and completely press back stop buffers (11). Model 253.1/9
3 Remove rear-end center section paneling (5). Model 205.2, 253.9 AR68.30-P-4785LWS
    Model 213.2 AR68.30-P-4786LWT
4 Remove lock striker (4).
5 Remove center brake lamp. When it is necessary to adjust the liftgate (1) in the x-direction (X) or y-direction (Y).
    Model 205.2, 253.1/9 AR82.10-P-5375LWS
    Model 213.2 AR82.10-P-5376LWT
6 Remove both pneumatic springs.   AR72.20-P-2832LW
    IMPORTANT Do not support liftgate (1) with support. Aid of helper required.

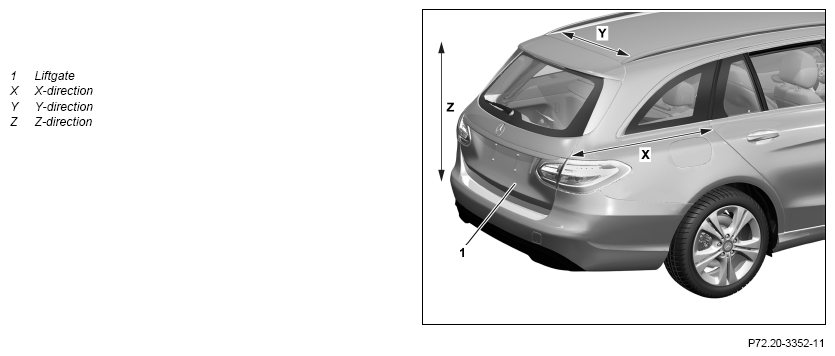

  Adjusting in x-direction (X) and y-direction (Y)
7 Loosen screws (6) on left and right hinge (7).
8 Adjust liftgate (1) in the x-direction (X) or y-direction (Y). IMPORTANT Aid of helper required.
    Model 205.2 Roof to rear spoiler BE60.00-P-1019-01BB
    Model 205.2 Sidewall to rear spoiler BE60.00-P-1020-01BB
    Model 205.2 Sidewall to liftgate BE60.00-P-1021-01BB
    Model 205.2 Outside of taillamp to inside of taillamp BE60.00-P-1022-01BB
    Model 205.2 Outside of liftgate to rear bumper BE60.00-P-1024-01BB
    Model 213.2 Roof to rear spoiler BE60.00-P-1017-01GA
    Model 213.2 Sidewall to rear spoiler BE60.00-P-1018-01GA
    Model 213.2 Outside of liftgate to rear bumper BE60.00-P-1020-01GA
    Model 213.2 Sidewall to liftgate BE60.00-P-1021-01GA
    Model 213.2 Outside of taillamp to inside of taillamp BE60.00-P-1022-01GA
    Model 253.1/9 Roof to rear spoiler/liftgate *BE60.00-P-1012-01FA
    Model 253.1/9 Sidewall to liftgate *BE60.00-P-1013-01FA
    Model 253.1/9 Outside of taillamp to inside of taillamp *BE60.00-P-1014-01FA
    Model 253.1/9 Outside of liftgate to rear bumper *BE60.00-P-1016-01FA
    SPECIAL TOOL Feeler gauge Fig 1
9 Tighten screws (6) on hinges (7). IMPORTANT Aid of helper required.
    TORQUE SPECIFICATION Bolt, liftgate hinge to liftgate *BA72.20-P-1002-02N
10 Repair paint damage on screws (6) with appropriate touch-up paint pen.
REMOVING Remove
11 Remove roof lining lay down on seats with connected electric lines. If the liftgate (1) must be adjusted in the z-direction (Z).
      AR68.30-P-4300LWS
12 Remove trunk lid/liftgate control drive unit. Model 205.2, 213.2, 253.1/9
with code 890 (EASY-PACK-tailgate)
If the liftgate (1) must be adjusted in the z-direction (Z).

      AR72.29-P-5590LW
  Adjusting in Z-direction (Z)
13 Loosen screws (8) on left and right hinge (7).
14 Adjust transition between the liftgate (1) and the roof frame in the z direction (Z). IMPORTANT Aid of helper required.
Top edge of liftgate (1) must be flush with roof frame. Observe dimension "U1".

    Model 205.2 Center of liftgate to rear bumper BE60.00-P-1023-01BB
    Model 213.2 Center of liftgate to rear bumper BE60.00-P-1019-01GA
    Model 253.1/9 Center of liftgate to rear bumper *BE60.00-P-1015-01FA
    SPECIAL TOOL Feeler gauge Fig 1
15 Tighten screws (8) on hinges (7). IMPORTANT Aid of helper required.
    TORQUE SPECIFICATION Bolt, hinge for liftgate to roof frame *BA72.20-P-1001-02N
16 Repair paint damage on screws (8) with appropriate touch-up paint pen.
INSTALLING Install
17 Install both pneumatic springs.   AR72.20-P-2832LW
    IMPORTANT Aid of helper required.
18 Insert lock striker (4) and screw in screws up to stop.
  Adjusting the transitions to the edges of the fenders and the D-pillars
19 Adjust transition between liftgate (1) and edges of fender and D-pillars by moving lock striker (4). IMPORTANT Liftgate (1) must be flush with edges of fender and D-pillars.
20 Tighten screws on lock striker (4). TORQUE SPECIFICATION Screw/bolt, lock striker for liftgate to rear center section *BA72.20-P-1003-02N
21.1 Completely pull out stop lugs (3). Model 205.2, 213.2
21.2 Pull out stop buffers (11) up to end of the notches. Model 253.1/9
22 Carefully close liftgate (1) and open again. Model 205.2, 213.2, 253.1/9
23.1 Pull stop lugs (3) out two notches. Model 205.2, 213.2
except code 890 (EASY-PACK-tailgate)

23.2 Pull stop buffers (11) out two notches. Model 253.1/9
except code 890 (EASY-PACK-tailgate)

24.1 Tighten screws (2). Model 205.2, 213.2
24.2 Tighten bolts (10). Model 253.1/9
INSTALLING Install
25 Install rear-end center section paneling (5). Model 205.2, 253.1/9 AR68.30-P-4785LWS
    Model 213.2 AR68.30-P-4786LWT
26 Install trunk lid/liftgate control drive unit. When the liftgate (1) was adjusted in the z-direction (Z).
    Model 205.2, 213.2, 253.1/9
with code 890 (EASY-PACK-tailgate)
AR72.29-P-5590LW
27 Install headliner. When the liftgate (1) was adjusted in the z-direction (Z).
      AR68.30-P-4300LWS
28 Install center brake lamp. When the liftgate (1) was adjusted in the x-direction (X) or y-direction (Y).
    Model 205.2, 253.1/9 AR82.10-P-5375LWS
    Model 213.2 AR82.10-P-5376LWT
  Calibrate
29 Calibrate rear 360° camera with vehicle diagnosis system. Model 205.2, 213.2, 253.1/9 with code 501 (360° camera)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.1/9
BE60.00-P-1012-01FA Roof to rear spoiler/liftgate Dimension "Q" mm 4, 5 (±1, 5)
For picture, see   AR60.00-P-0700-01LW
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.1/9
BE60.00-P-1013-01FA Sidewall to liftgate Dimension "S" mm 4, 0 (±1, 5)
For picture, see   AR60.00-P-0700-01LW
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.1/9
BE60.00-P-1014-01FA Outside of taillamp to inside of taillamp Dimension "T" mm 3, 5 (+1, 5/-1)
For picture, see   AR60.00-P-0700-01LW
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.1/9
BE60.00-P-1015-01FA Center of liftgate to rear bumper Dimension "U1" mm 5, 5 (±1, 5)
Dimension "M1" mm -
For picture, see   AR60.00-P-0700-01LW
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.1/9
BE60.00-P-1016-01FA Outside of liftgate to rear bumper Dimension "U2" mm 3, 5 (±1)
Dimension "M" mm -
For picture, see   AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.2
BE60.00-P-1017-01GA Roof to rear spoiler Dimension "Q" mm 4, 9 (±1, 4)
For picture, see   AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.2
BE60.00-P-1018-01GA Sidewall to rear spoiler Dimension "R" mm 3, 9 (±1, 3)
For picture, see   AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.2
BE60.00-P-1019-01BB Roof to rear spoiler Dimension "Q" mm 4, 6 (±1, 4)
For picture, see   AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.2
BE60.00-P-1019-01GA Center of liftgate to rear bumper Dimension "U1" mm 5, 5 (±1, 5)
For picture, see   AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.2
BE60.00-P-1020-01BB Sidewall to rear spoiler Dimension "R" mm 4, 0 (±1, 3)
For picture, see   AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.2
BE60.00-P-1020-01GA Outside of liftgate to rear bumper Dimension "U2" mm 3, 8 (±1, 0)
For picture, see   AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.2
BE60.00-P-1021-01BB Sidewall to liftgate Dimension "S" mm 3, 5 (±0, 8)
For picture, see   AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.2
BE60.00-P-1021-01GA Sidewall to liftgate Dimension "S" mm 3, 5 (±0, 8)
For picture, see   AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.2
BE60.00-P-1022-01BB Outside of taillamp to inside of taillamp Dimension "T" mm 3, 8 (±1, 0)
For picture, see   AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.2
BE60.00-P-1022-01GA Outside of taillamp to inside of taillamp Dimension "T" mm 3, 8 (±1, 0)
For picture, see   AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.2
BE60.00-P-1023-01BB Center of liftgate to rear bumper Dimension "U1" mm 5, 5 (±1, 5)
For picture, see   AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.2
BE60.00-P-1024-01BB Outside of liftgate to rear bumper Dimension "U2" mm 3, 8 (±1, 0)
For picture, see   AR60.00-P-0700-01LW
LIFTGATE

Number Designation Model 205.2 Model 213.2
BA72.20-P-1001-02N Bolt, hinge for liftgate to roof frame Nm 40 40
LIFTGATE

Number Designation Model 253
BA72.20-P-1001-02N Bolt, hinge for liftgate to roof frame Nm 40
LIFTGATE

Number Designation Model 205.2 Model 213.2
BA72.20-P-1002-02N Bolt, liftgate hinge to liftgate Nm 34 34
LIFTGATE

Number Designation Model 253
BA72.20-P-1002-02N Bolt, liftgate hinge to liftgate Nm 32
LIFTGATE

Number Designation Model 205.2 Model 213.2
BA72.20-P-1003-02N Screw/bolt, lock striker for liftgate to rear center section Nm 9 9
LIFTGATE

Number Designation Model 253
BA72.20-P-1003-02N Screw/bolt, lock striker for liftgate to rear center section Nm 9
