Remove/install stabilizer bar on front axle - AR32.20-P-0300NKB

MODEL 117, 156, 176, 242, 246

Shown on model 246

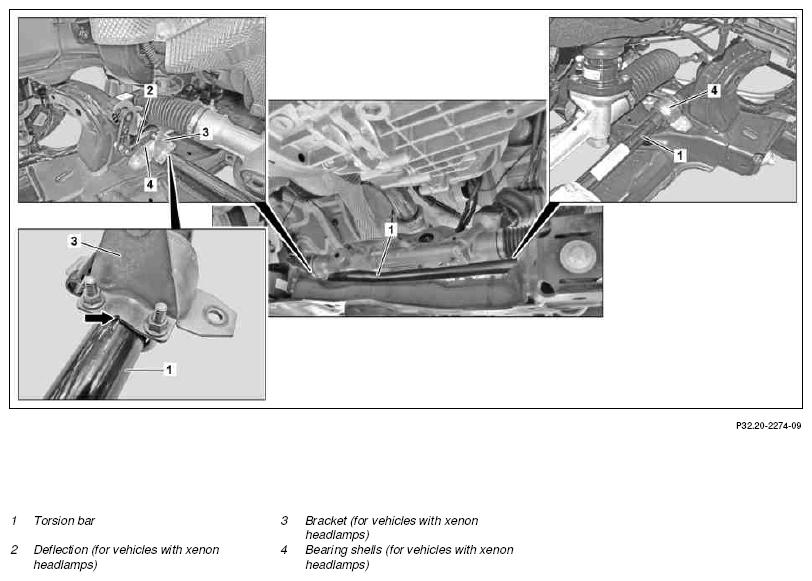

Fig 1: Front Axle Stabilizer Bar Remove/Install Components - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Note on high-voltage battery		AH54.10-P-0006-01MEV
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Note on high-voltage on-board electrical system		AH54.00-P-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Perform disable for the high-voltage on-board electrical system	Model 242 with engine 780	AR54.10-P-1150NKE
2	Detach rack-and-pinion steering from front axle carrier and put down towards rear area		AR46.20-P-0600NKB
3	Unclip pulley (2) from bracket (3)	Model 117, 156, 176, 242, 246 up to model year 2015 with code 614 (Bi-xenon headlamps) Model 117, 156, 176, 242, 246 up to model year 2015 with code 615 (Bi-xenon headlamps with active light function) Model 117, 156, 176, 242, 246 up to model year 2015 with code 618 (Bi-xenon headlamps) Model 117, 156, 176, 242, 246 up to model year 2015 with code 621 (Intelligent Light System (left-hand traffic)) Model 117, 156, 176, 242, 246 up to model year 2015 with code 622 (Intelligent Light System) Pay attention to installation position.	AR82.10-P-4083NKB
4	Detach bearing shells (4) of torsion bar (1) from front axle carrier	Tighten bolts equally.
		Bolt, torsion bar to front axle carrier	*BA32.20-P-1001-02K
5	Remove torsion bar (1)
6	Detach bracket (3) from torsion bar (1)	Vehicles with xenon headlamps When replacing the torsion bar (1). Notch on bracket (3) must line up with marking (arrow) on the torsion bar (1).
7	Install in the reverse order
8	Perform wheel alignment check		AR40.20-P-0200NKB

FRONT AXLE TORSION BAR

Number	Designation		Model 117	Model 156
BA32.20-P-1001-02K	Bolt, torsion bar to front axle carrier	Nm	35	35

FRONT AXLE TORSION BAR

Number	Designation		Model 242	Model 176, 246
BA32.20-P-1001-02K	Bolt, torsion bar to front axle carrier	Nm	35	35
