Remove/install lower wishbone - AR33.20-P-0510NKB

MODEL 117, 156, 176, 242, 246

MODIFICATION NOTES

25.9.12 Self-locking nut, connecting rod to rotary rod MODEL 242 BA32.20-P-1002-02K
25.9.12 Self-locking nut, connecting rod to rotary rod MODEL 176, 246 BA32.20-P-1002-02K

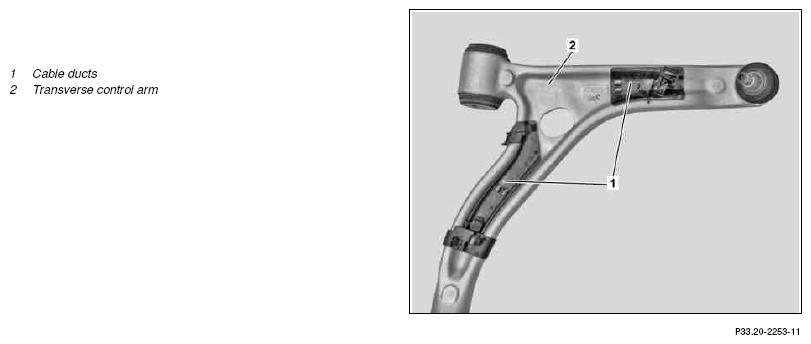

Fig 1: Lower Wishbone Remove/Install Components (1 Of 2)
G10250421Courtesy of MERCEDES-BENZ USA
Fig 2: Lower Wishbone Remove/Install Components (2 Of 2)
G10250422Courtesy of MERCEDES-BENZ USA
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Lift vehicle on vehicle lift   AR00.60-P-1000AK
2 Remove left or right front wheel
REFER TO MAINTENANCE     AP40.10-P-4050AK
3.1 Detach lower engine compartment paneling MODEL 117 with ENGINE 133, 270
MODEL 156
MODEL 176 with ENGINE 133, 270
MODEL 242 with ENGINE 270, 780
MODEL 246 with ENGINE 270
  AR61.20-P-1105NKB
3.2 Remove bottom section of soundproofing MODEL 117 with ENGINE 607, 651
MODEL 176 with ENGINE 607, 651
MODEL 246 with ENGINE 607, 651
  AR94.30-P-5300NKB
4 Detach left or right wheel well liner   AR88.10-P-1300NKB
5 Unclip electrical lines from cable ducts (1) on transverse control arm (2)
6 Remove bolt (7) to transverse control arm bearing (4) and transverse control arm (2) INSTALLATION IMPORTANT Only tighten bolt (7) in ready-to-drive condition.
TORQUE SPECIFICATION Bolt, transverse control arm to transverse control arm bearing *BA33.15-P-1004-01F
7 Remove bolt (3) to transverse control arm bearing (4) and frame floor assembly
NOTES Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
    TORQUE SPECIFICATION Bolt, transverse control arm bearing to longitudinal member *BA33.15-P-1003-01F
8 Remove nuts on transverse control arm bearing (4) and front axle carrier (5) and pull out bolts (6) TORQUE SPECIFICATION Bolt, transverse control arm bearing to front axle carrier *BA33.15-P-1002-01F
9 Remove bolt (8a) to transverse control arm (2) and front axle carrier (5) INSTALLATION IMPORTANT Only tighten bolt (8a) when in ready-to-drive condition. Nut (8b) in retaining plate (9) must be replaced.
TORQUE SPECIFICATION Bolt, transverse control arm to front axle carrier *BA33.15-P-1001-01F
10 Pry off supporting ball joint from steering knuckle   AR33.20-P-0440-01NKB
TORQUE SPECIFICATION Nut, supporting ball joint/transverse control arm to steering knuckle *BA33.15-P-1005-01F
SPECIAL TOOL Press Figure
SPECIAL TOOL Puller Figure
11 Detach link rods on torsion bar TORQUE SPECIFICATION Self-locking nut, connecting rod to torsion bar *BA32.20-P-1002-02K
12 Remove transverse control arm (2) from front axle carrier (5) NOTES
Do not damage rubber boot on supporting ball joint.
Otherwise the transverse control arm (2) has to be replaced.
IMPORTANT Push torsion bar on front axle upwards.
IMPORTANT When replacing the transverse control arm (2) the cable ducts (1) have to be modified.
INSPECT Check
13 Check condition of rubber boot on supporting ball joint When reinstalling transverse control arm (2).
REFER TO MAINTENANCE     AP33.20-P-3353AK
    IMPORTANT If rubber boot is defective the transverse control arm (2) has to be replaced.
CLEAN Clean
14 Clean cone on transverse control arm (2) and transverse control arm bearing (4) IMPORTANT There must be no oil or grease on the cone and on the thread.
15 Install in the reverse order
16 Perform wheel alignment check   AR40.20-P-0200NKB
FRONT AXLE TORSION BAR

Number Designation MODEL 117 MODEL 156
BA32.20-P-1002-02K Self-locking nut, connecting rod to torsion bar Nm 105 105
FRONT AXLE TORSION BAR

Number Designation MODEL 242 MODEL 176, 246
BA32.20-P-1002-02K Self-locking nut, connecting rod to torsion bar Nm 105 105
TRAILING ARMS, WISHBONES

Number Designation MODEL 117 MODEL 242
BA33.15-P-1001-01F Bolt, transverse control arm to front axle carrier M14 Stage 1 Nm 120 120
Stage 2 ∠° 90 90
TRAILING ARMS, WISHBONES

Number Designation MODEL 156, 176, 246
BA33.15-P-1001-01F Bolt, transverse control arm to front axle carrier M14 Stage 1 Nm 120
Stage 2 ∠° 90
TRAILING ARMS, WISHBONES

Number Designation MODEL 117 MODEL 242
BA33.15-P-1002-01F Bolt, transverse control arm bearing to front axle carrier M10 Stage 1 Nm 50 50
Stage 2 ∠° 90 90
TRAILING ARMS, WISHBONES

Number Designation MODEL 156, 176, 246
BA33.15-P-1002-01F Bolt, transverse control arm bearing to front axle carrier M10 Stage 1 Nm 50
Stage 2 ∠° 90
TRAILING ARMS, WISHBONES

Number Designation MODEL 117 MODEL 242
BA33.15-P-1003-01F Bolt, transverse control arm bearing to longitudinal member M10 Nm 60 60
TRAILING ARMS, WISHBONES

Number Designation MODEL 156, 176, 246
BA33.15-P-1003-01F Bolt, transverse control arm bearing to longitudinal member M10 Nm 60
TRAILING ARMS, WISHBONES

Number Designation MODEL 117 MODEL 242
BA33.15-P-1004-01F Bolt, transverse control arm to transverse control arm bearing M14 Stage 1 Nm 80 80
Stage 2 ∠° 90 90
TRAILING ARMS, WISHBONES

Number Designation MODEL 156, 176, 246
BA33.15-P-1004-01F Bolt, transverse control arm to transverse control arm bearing M14 Stage 1 Nm 80
Stage 2 ∠° 90
TRAILING ARMS, WISHBONES

Number Designation MODEL 117 MODEL 242
BA33.15-P-1005-01F Nut, supporting ball joint/transverse control arm to steering knuckle M14 Stage 1 Nm 65 65
Stage 2 ∠° 45 45
TRAILING ARMS, WISHBONES

Number Designation MODEL 156, 176, 246
BA33.15-P-1005-01F Nut, supporting ball joint/transverse control arm to steering knuckle M14 Stage 1 Nm 65
Stage 2 ∠° 45
Fig 3: Identifying Puller (246 589 00 33 00)
G10250402Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Press (163 589 03 43 00)
G07300835Courtesy of MERCEDES-BENZ USA
