Remove/install activated charcoal canister - AR47.30-P-8212MTA

ENGINE 133 in MODEL 156, 176

Fig 1: Activated Charcoal Canister Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Activated Charcoal Canister Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Remove/install
1	Remove right underfloor paneling		AR61.30-P-1001NKB

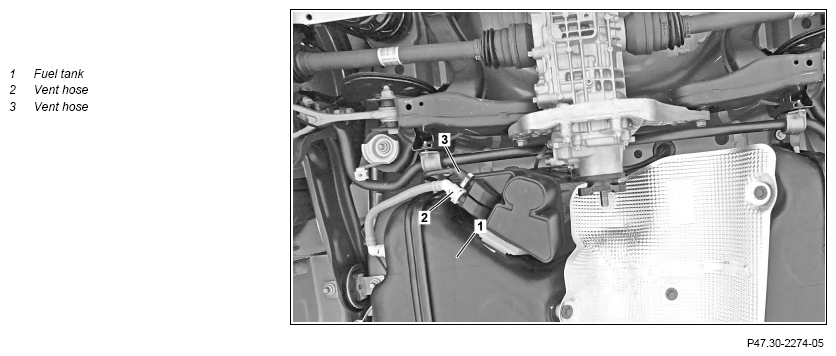

2	Detach bleed hoses (2, 3) on activated charcoal canister	A check valve is installed in the vent hoses (2, 3) to avoid large fuel leakage.

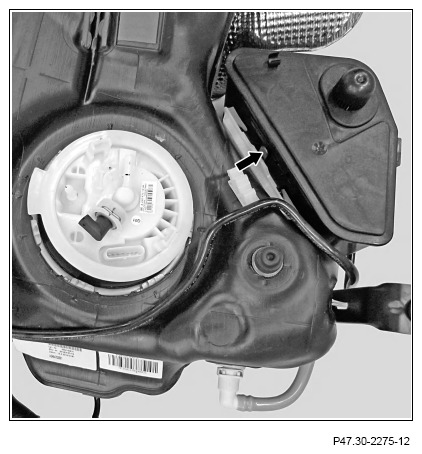

3	Press catch tab (arrow) on activated charcoal canister, push activated charcoal canister upwards and remove
4	Install in the reverse order
