Remove/install underbody paneling - AR61.30-P-1001NKB

MODEL 117, 156, 176, 242, 246

Shown on MODEL 246

Fig 1: Underbody Paneling Remove/Install Components - Shown On Model 246 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Underbody Paneling Remove/Install Components - Shown On Model 246 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 242 with engine 780

Fig 3: Underbody Paneling Remove/Install Components - Shown On Model 242 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 4: Underbody Paneling Remove/Install Components - Shown On Model 242 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Raise vehicle with vehicle lift		AR00.60-P-1000AK
		Use adapter kit.
		Adapter kit	Fig 5
2	Unscrew nut (2) from right fender liner (5) on right and left	Model 117, 156, 176, 246 Model 242 with engine 270

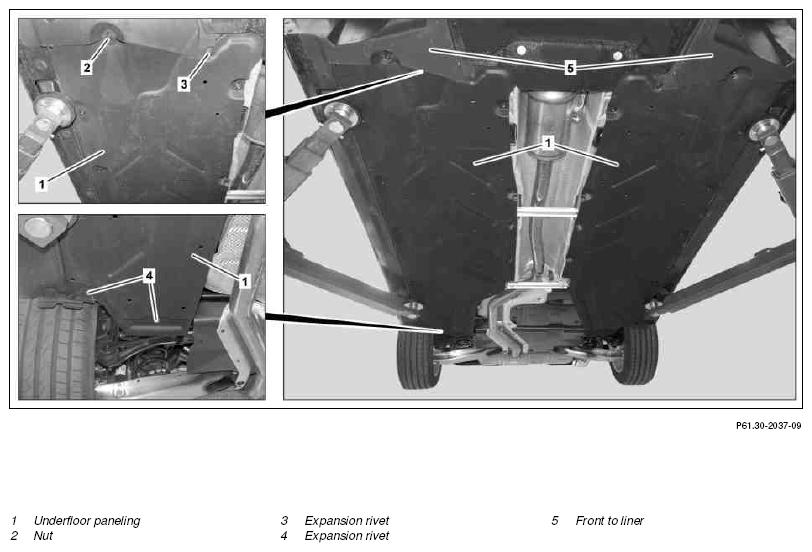

3	Remove expansion rivet (3) from front fender liner (5)	Model 117, 156, 176, 246 Model 242 with engine 270
4	Remove expansion rivets (4)	Model 117, 156, 176, 246 Model 242 with engine 270 On model 156 bolts are installed instead of expansion rivets (4).
5	Unscrew nuts (6) and remove underfloor paneling (1)	Model 117, 156, 176, 246 Model 242 with engine 270

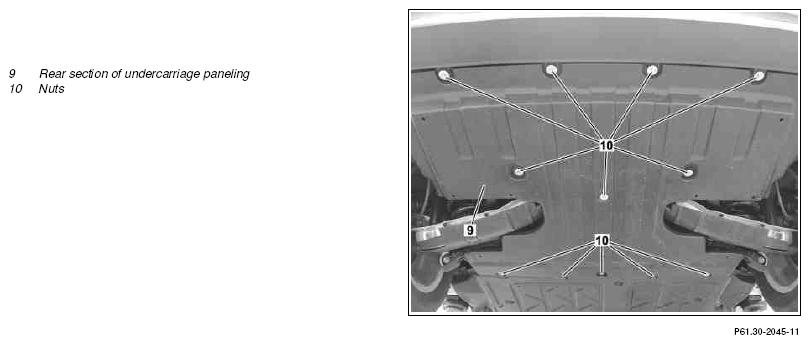

6	Remove rear underfloor paneling (9)	Model 242 with engine 780 To do so, remove nuts (10).

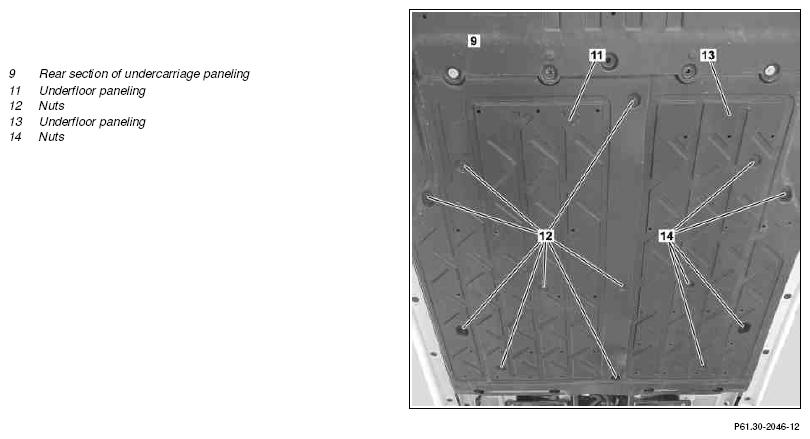

7	Remove underbody paneling (11)	Model 242 with engine 780 To do so, remove nuts (12).
8	Remove underbody paneling (13)	Model 242 with engine 780 To do so, remove nuts (14).
9	Install in the reverse order

Fig 5: Identifying Adapter Kit (203 589 02 31 00)

Courtesy of MERCEDES-BENZ USA
