Remove/Install Radial Shaft Sealing Ring On Drive Pinion - AR35.30-P-4672XGA

Model 463 with engine 176, 177

as of model year 2019

Model 463 with engine 264

as of model year 2019

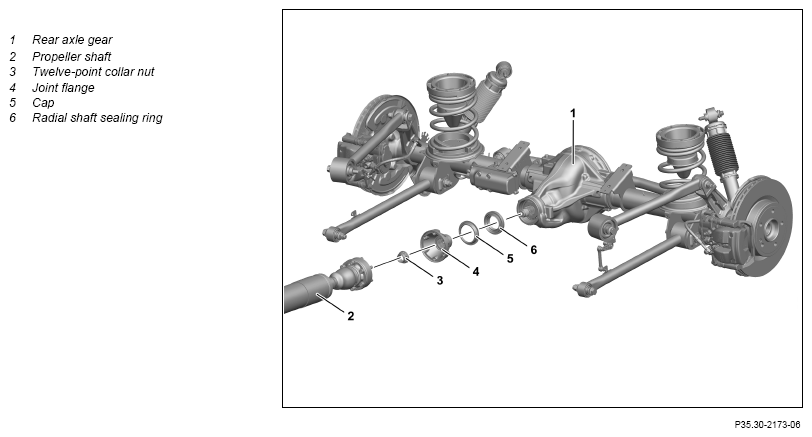

Fig 1: Rear Axle Radial Shaft Seal On Drive Pinion Components Location - Model 463 With Engines 176 & 177 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove
1	Detach wheel and tire assemblies of rear axle.		AR40.10-P-1102XG
2	Drain oil from rear axle differential (1).		AR35.31-P-0523XGA
3	Detach propeller shaft (2) from joint flange (4) and secure to prevent it from falling.	Model 463 with engine 176, 177 as of model year 2019	AR41.10-P-0050XGA
		Model 463 with engine 264 as of model year 2019	AR41.10-P-0050XGF
4	Turn joint flange (4) by hand and check end play of bearing.	The bearing must have no axial play. Otherwise the bearing and the gear set in the rear axle differential (1) will be damaged. If there is axial play or if there is wear debris (shavings) in the drained oil,
		↓
		Replace rear axle.	AR35.10-P-0010XG
5	Determine and note down friction torque on joint flange of drive pinion (4).	Determine friction value at approx. 50 RPM Use a cordless screwdriver for the measurement.
		Torque meter	Fig 3
6	Remove twelve-point collar nut (3).	To do so, screw in retainer wrench using 2 screws into joint flange (4) and counter hold joint flange (4) using retainer wrench.
		Retainer wrench	Fig 7
7	Detach joint flange (4).	Puller	Fig 5
8	Remove cover (5).
9	Pry radial shaft sealing ring (6) out of rear axle differential (1) using a suitable tool.	Do not damage the seat of the radial shaft sealing ring (6) in the rear axle differential (1). Otherwise leakage may occur.
	Install
10	Clean seat of radial shaft sealing ring (6) in rear axle differential (1).	Assembly cleaner	*BR00.45-Z-1028-04A
11	Check seat of radial shaft sealing ring (6) in rear axle differential (1) for damage.	If damage is found,
		↓
		Replace rear axle.	AR35.10-P-0010XG
12	Coat radial shaft sealing ring (6) on inner sealing lip with transmission oil.
	Universal hypoid gear oils (specification 235.7)		BB00.40-P-0235-07A
		Do not apply any transmission oil to sitting surface and outer circumference of radial shaft sealing ring (6). Otherwise leakage may occur.
		Replace radial shaft sealing ring (6).
13	Press radial shaft sealing ring (6) into rear axle differential (1).	Drift	Fig 2
14	Install cover (5).
15	Attach joint flange (4) to drive pinion.		AR35.30-P-0472-02XGA
		Collar nut of drive flange to drive pinion	*BA35.30-P-1001-06A
		Drive pinion collar nut rotation angle to align the tapered rollers	*BA35.30-P-1002-06A
		Friction torque of bevel gear with gaskets	*BE35.30-P-1001-06A
		End play for drive pinion bearing	*BE35.30-P-1002-06A
		Dial indicator holder	Fig 6
		Torque meter	Fig 3
		Dial gauge	Fig 4
		Retainer wrench	Fig 7
16	Secure twelve-point collar nut (3) by caulking.
17	Release propeller shaft (2) and attach to joint flange (4).	Model 463 with engine 176, 177 as of model year 2019	AR41.10-P-0050XGA
		Model 463 with engine 264 as of model year 2019	AR41.10-P-0050XGF
18	Add oil to rear axle differential (1).		AR35.31-P-0523XGA
19	Install wheel and tire assemblies of rear axle.		AR40.10-P-1102XG
20	Check rear axle differential (1) for leak tightness.
	Notes on evaluating leakages		AH00.00-N-0011-01A

Fig 2: Identifying Drift (741 589 02 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Torque Meter (001 589 49 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Dial Gauge (001 589 53 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Puller (000 589 65 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Dial Indicator Holder (363 589 02 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Retainer Wrench (717 589 00 31 00)

Courtesy of MERCEDES-BENZ USA
