Remove/Install Radial Seal At Drive Pinion Gear - AR35.30-P-4670F

Model 460

Model 461 (except 461. 331)

Model 463 (except 463.270/271)

up to model year 2013

Shown on MODEL 463

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove flange (9) from drive pinion	Model 460 Model 461 (except 461. 331) Model 463 (except 463.270/271) up to model year 2013/face lift 2012	AR35.30-P-0472F
2	Remove outer radial sealing ring (7) and inner radial sealing ring (6)
3	Remove O-ring (5)
	Install
4	Install O-ring (5)	Replace O-ring (5).
5	Install inner radial sealing ring (6) and outer radial sealing ring (7)	Pound in inner radial sealing ring (6) with washer of special tool engaged. Pound in outer radial sealing ring (7) without washer of special tool engaged.
		Coat outer edge of radial sealing rings without outer rubber coating with sealant. Install radial sealing rings with outer rubber coating without sealant.
		Pack the space between the dust lip and lip with grease, lubricate lip and garter spring lightly.
		Sealant, Omnifit FD 3041	*BR00.45-Z-1012-01A
		MB multipurpose grease, 400 g	*BR00.45-Z-1017-06A
		Drift	Fig 1
6	Install flange (9) on drive pinion	Remove/install drive flange at drive pinion	AR35.30-P-0472F

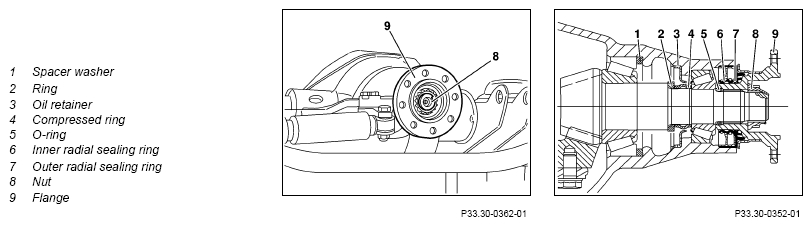

Fig 1: Identifying Drift (460 589 15 15 00)
