Remove/Install Oil Lines Of Oil Cooling For Automatic Transmission - AR27.55-P-0600OLE
Transmission 725.0 in model 213, 238 with engine 274
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 725.0 in model 213, 238 with engine 642
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 725.0 in model 213, 238 with engine 654
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 725.0 in model 213, 238, 257 with engine 264
with code M005 (Vehicles with 4MATIC/all-wheel drive)

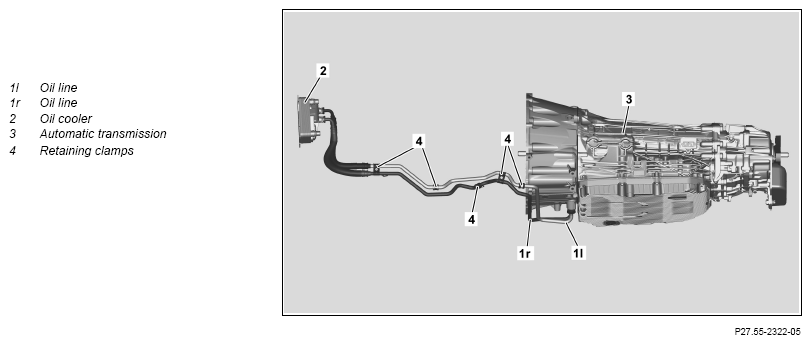

Shown on transmission 725.0 with engine 274 with code M005 (4MATIC)
Fig 1: Oil Lines Of Oil Cooling For Automatic Transmission Components Location - Transmission 725.0; Model 213 With Engine 274 Or 264; Code M005 (Shown On Engine 274)

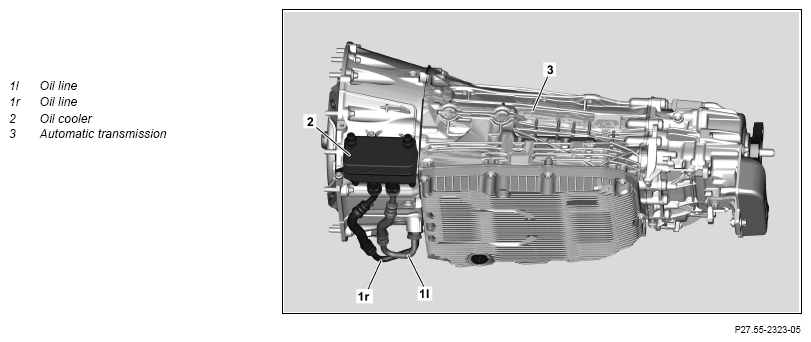

Shown on transmission 725.0 with engine 654 with code M005 (4MATIC)

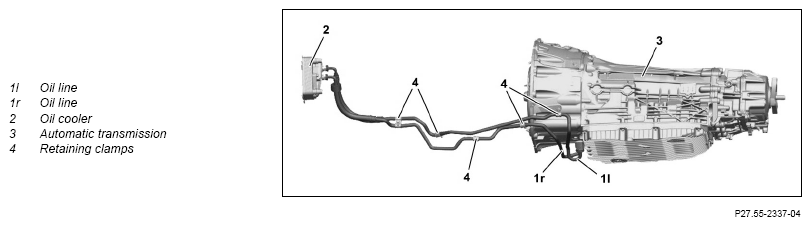

Shown on transmission 725.0 with engine 642 with code M005 (4MATIC)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove lower engine compartment paneling. | Transmission 725.0 in model 213, 238 with engine 264 with code M005 (Vehicles with 4MATIC/all- wheel drive) Transmission 725.0 in model 213, 238 with engine 274 with code M005 (Vehicles with 4MATIC/all- wheel drive) Transmission 725.0 in model 213, 238 with engine 642 with code M005 (Vehicles with 4MATIC/all- wheel drive) Transmission 725.0 in model 213, 238 with engine 654 with code M005 (Vehicles with 4MATIC/all- wheel drive) |
AR61.20-P-1105LWE |
| Transmission 725.0 in model 257 with engine 264 with code M005 (Vehicles with 4MATIC/all- wheel drive) |
AR61.20-P-1105FR | ||
| 2 | Thoroughly clean area around oil lines (1l, 1r) at oil cooler (2). | ||
| 3 | Detach retaining clamps (4) of oil lines (1l, 1r). | Transmission 725.0 in model 213, 238 with engine 274 with code M005 (Vehicles with 4MATIC/all- wheel drive) Transmission 725.0 in model 213, 238 with engine 642 with code M005 (Vehicles with 4MATIC/all- wheel drive) |
*BA27.55-P-1003-01D |
| *BA27.55-P-1004-01D | |||
| *BA27.55-P-1005-01D | |||
| *BA27.55-P-1006-01D | |||
| 4 | Detach oil lines (1l, 1r) from automatic transmission (3). | AR27.10-P-0501-03LF | |
| Fig 2 | |||
| 5 | Seal openings in automatic transmission (3) using suitable stop plugs. | Fig 2 | |
| 6 | Detach oil lines (1l, 1r) from oil cooler (2). | AR27.10-P-0501-03LF | |
| Fig 2 | |||
| 7 | Seal openings in oil cooler (2) using suitable stop plugs. | Fig 2 | |
| 8.1 | Remove oil lines (1l, 1r) towards the rear. | Transmission 725.0 in model 213, 238 with engine 274 with code M005 (Vehicles with 4MATIC/all- wheel drive) Transmission 725.0 in model 213, 238 with engine 642 with code M005 (Vehicles with 4MATIC/all- wheel drive) |
|
| 8.2 | Remove oil lines (1l, 1r) downwards. | Transmission 725.0 in model 213, 238 with engine 654 with code M005 (Vehicles with 4MATIC/all- wheel drive) Transmission 725.0 in model 213, 238, 257 with engine 264 with code M005 (Vehicles with 4MATIC/all- wheel drive) |
|
| 9 | Install in the reverse order | ||
| 10 | Check and correct oil level in automatic transmission (3). | Transmission 725.047 in model 213 with engine 274 with code M005 (Vehicles with 4MATIC/all- wheel drive) Transmission 725.047 in model 213 with engine 654 with code M005 (Vehicles with 4MATIC/all- wheel drive) |
AR27.00-P-0270EWH |
| Transmission 725.0 (except 725.007/017/047) in model 213 with engine 274 with code M005 (Vehicles with 4MATIC/all- wheel drive) Transmission 725.0 (except 725.017/047) in model 213 with engine 654 with code M005 (Vehicles with 4MATIC/all- wheel drive) Transmission 725.0 in model 213, 238 with engine 642 with code M005 (Vehicles with 4MATIC/all- wheel drive) Transmission 725.0 in model 213, 238, 257 with engine 264 with code M005 (Vehicles with 4MATIC/all- wheel drive) Transmission 725.0 in model 238 with engine 274 with code M005 (Vehicles with 4MATIC/all- wheel drive) Transmission 725.0 in model 238 with engine 654 with code M005 (Vehicles with 4MATIC/all- wheel drive) |
AR27.00-P-0270EWN | ||
11 |
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Check automatic transmission (3) for proper operation and leak tightness. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
| 12 | Install lower engine compartment paneling. | Transmission 725.0 in model 213, 238 with engine 264 with code M005 (Vehicles with 4MATIC/all- wheel drive) Transmission 725.0 in model 213, 238 with engine 274 with code M005 (Vehicles with 4MATIC/all- wheel drive) Transmission 725.0 in model 213, 238 with engine 642 with code M005 (Vehicles with 4MATIC/all- wheel drive) Transmission 725.0 in model 213, 238 with engine 654 with code M005 (Vehicles with 4MATIC/all- wheel drive) |
AR61.20-P-1105LWE |
| Transmission 725.0 in model 257 with engine 264 with code M005 (Vehicles with 4MATIC/all- wheel drive) |
AR61.20-P-1105FR |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1003-01D | Screw, oil cooler oil line to oil pan | Nm | 12 |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1004-01D | Bolt, clamp to oil line | Nm | 8 |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1005-01D | Bolt, clamp of oil cooler oil line to bracket | Nm | 8 |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1006-01D | Screw, oil cooler oil line clamp to oil pan | Nm | 8 |
