Remove/Install Oil Lines Of Oil Cooling For Automatic Transmission - AR27.55-P-0600OLC

Transmission 725.0 in model 213 with engine 642 except code M005 (Vehicles with 4MATIC/all-wheel drive)

Transmission 725.0 in model 213, 238 with engine 274 except code M005 (Vehicles with 4MATIC/all-wheel drive)

Transmission 725.0 in model 213, 238 with engine 276.8 except code M005 (Vehicles with 4MATIC/all-wheel drive)

Transmission 725.0 in model 213, 238 with engine 654 except code M005 (Vehicles with 4MATIC/all-wheel drive)

Transmission 725.0 in model 213, 238, 257 with engine 264 except code M005 (Vehicles with 4MATIC/all-wheel drive)

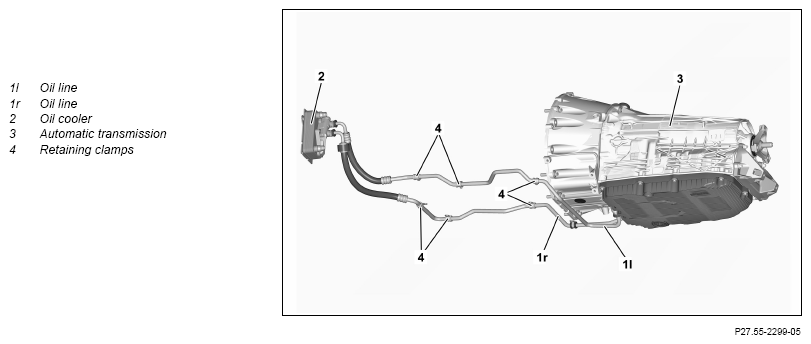

Shown on transmission 725.0 with engine 274 except code M005 (4MATIC)

Courtesy of MERCEDES-BENZ USA

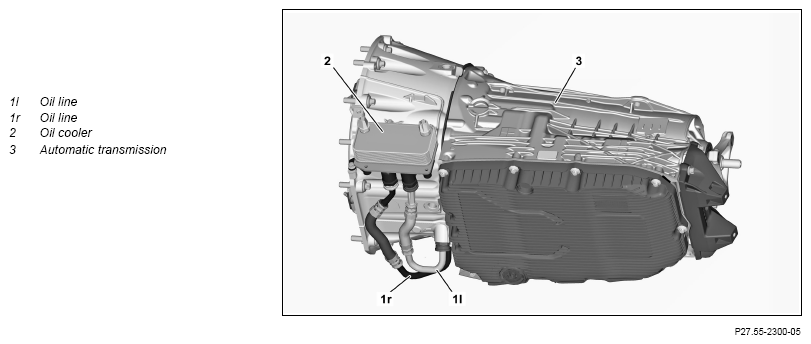

Shown on transmission 725.0 for engine 654 and engine 264 except code M005 (4MATIC)

Courtesy of MERCEDES-BENZ USA

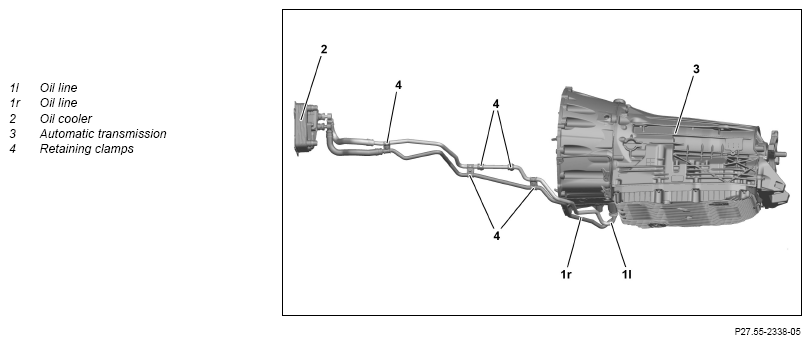

Shown on transmission 725.0 with engine 642 except code M005 (4MATIC)

Courtesy of MERCEDES-BENZ USA

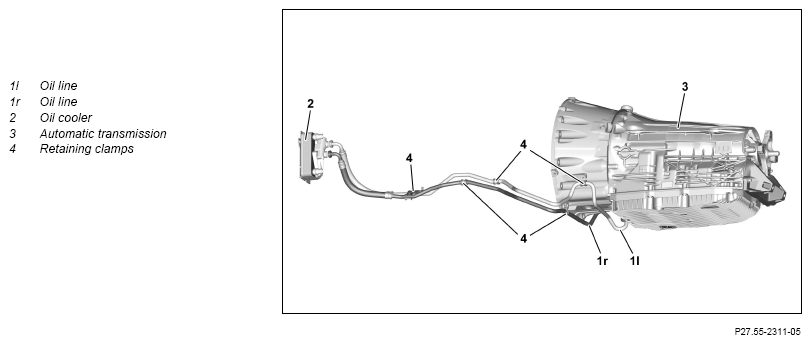

Shown on transmission 725.0 for engine 276.8 except code M005 (4MATIC)

Fig 1: Oil Lines Of Oil Cooling For Automatic Transmission Components Location - Transmission 725.0 In Model 213, 238 With Engines 274, 276.8 And 264 Except Code M005

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Remove lower engine compartment paneling.	Transmission 725.0 in model 213 with engine 642 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213, 238 with engine 264 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213, 238 with engine 274 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213, 238 with engine 276.8 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213, 238 with engine 654 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR61.20-P-1105LWE
		Transmission 725.0 in model 257 with engine 264 except code M005 (Vehicles with 4MATIC/all-wheel drive) : Only install lower engine compartment paneling after leak test.	AR61.20-P-1105FR
2	Thoroughly clean area around oil lines (1l, 1r) at oil cooler (2).
3	Detach retaining clamps (4) of oil lines (1l, 1r).	Transmission 725.0 in model 213 with engine 642 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213, 238 with engine 274 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213, 238 with engine 276.8 except code M005 (Vehicles with 4MATIC/all-wheel drive)
		Screw, oil cooler oil line to oil pan	*BA27.55-P-1003-01D
		Bolt, clamp to oil line	*BA27.55-P-1004-01D
		Bolt, clamp of oil cooler oil line to bracket	*BA27.55-P-1005-01D
		Screw, oil cooler oil line clamp to oil pan	*BA27.55-P-1006-01D
4	Detach oil lines (1l, 1r) from automatic transmission (3).		AR27.10-P-0501-03LF
		Record plug	Fig 2
5	Seal openings in automatic transmission (3) using suitable stop plugs.	Record plug	Fig 2
6	Detach oil lines (1l, 1r) from oil cooler (2).		AR27.10-P-0501-03LF
		Record plug	Fig 2
7	Seal openings in oil cooler (2) using suitable stop plugs.	Record plug	Fig 2
8.1	Remove oil lines (1l, 1r) towards the rear.	Transmission 725.0 in model 213 with engine 642 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213, 238 with engine 274 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213, 238 with engine 276.8 except code M005 (Vehicles with 4MATIC/all-wheel drive) : Replace seals.
8.2	Remove oil lines (1l, 1r) downwards.	Transmission 725.0 in model 213, 238 with engine 654 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213, 238, 257 with engine 264 except code M005 (Vehicles with 4MATIC/all-wheel drive) : Replace seals.
9	Install in the reverse order.
10	Check and correct oil level in automatic transmission (3).	Transmission 725.0 (except 725.007/017/047) in model 213 with engine 274 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 (except 725.007/017/047) in model 213 with engine 654 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213 with engine 642 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213, 238 with engine 276.8 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213, 238, 257 with engine 264 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 238 with engine 274 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 238 with engine 654 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR27.00-P-0270EWN
		Transmission 725.007/017 in model 213 with engine 274 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.017 in model 213 with engine 654 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR27.00-P-0270EWH
11	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Check automatic transmission (3) for proper operation and leak tightness.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Install lower engine compartment paneling.	Transmission 725.0 in model 213 with engine 642 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213, 238 with engine 264 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213, 238 with engine 274 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213, 238 with engine 276.8 except code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.0 in model 213, 238 with engine 654 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR61.20-P-1105LWE
		Transmission 725.0 in model 257 with engine 264 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR61.20-P-1105FR

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
