Remove/Install Automatic Transmission Fluid Cooler - AR27.55-P-1000MNE
Transmission 725.0 in model 213 with engine 177
with code M005 (Vehicles with 4MATIC/all-wheel drive)

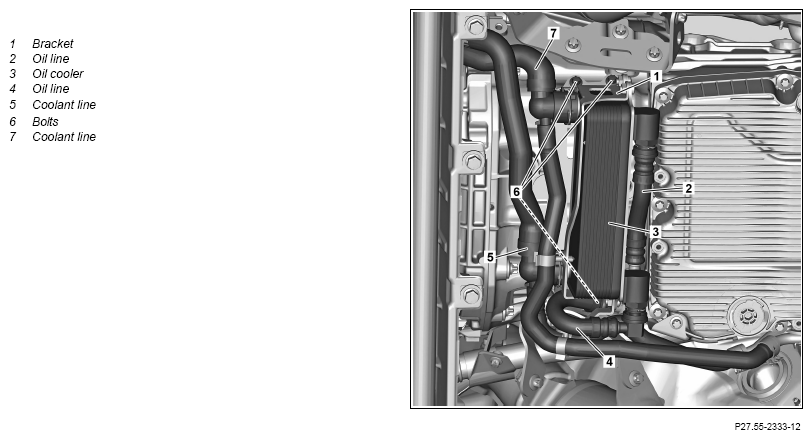

Fig 1: Automatic Transmission Fluid Cooler Components Location - Transmission 725.0 In Model 213 With Engine 177 With Code M005
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove center and rear sections of lower engine compartment lining | AR61.20-P-1105LWE | |
| 2 | Remove oil lines (2, 4) from oil cooler (3) and | AR27.10-P-0501-03LF | |
| seal openings with suitable stop plugs | Fig 3 | ||
| 3 | Drain coolant from low-temperature circuit | AR09.41-P-6834MNE | |
| 4 | Remove coolant line (5) from oil cooler (1) and seal connections with protective covers | AR20.20-P-7441-01RQ | |
| Fig 2 | |||
| 5 | Unclip coolant lines (5, 7) from holder (1) | ||
| 6 | Remove bolts (6) and remove oil cooler (3) | *BA27.55-P-1018-01D | |
| 7 | Remove bolts from bracket (1) and remove bracket (1) from oil cooler (3) | When replacing oil cooler (3). |
*BA00.10-P-1002-04A |
| 8 | Install in the reverse order | ||
| 9 | Check fluid level in automatic transmission and adjust to correct level | AR27.00-P-0270EWN | |
10 |
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform engine test run and check oil cooler (3) and oil lines (2, 4) for proper operation and leak tightness |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
| 11 | Install center and rear sections of lower engine compartment lining | AR61.20-P-1105LWE |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6x1 | Nm | 9 | 13 |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1018-01D | Bolt, oil cooler to transmission | Nm | 12 |
