Remove/Install Rear Engine Support - AR22.10-P-4360MNE
Engine 177 in model 213
with code M005 (4MATIC)
MODIFICATION NOTES
| 13.09.2017 | Bolt, rear engine mount to body | Model 213 with Engine 177 | BA22.10-P-1005-03N |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Secure vehicle on vehicle lift | AR00.60-P-0100CW | |
| 2 | Remove center and rear section of lower engine compartment paneling | AR61.20-P-1105LWE | |

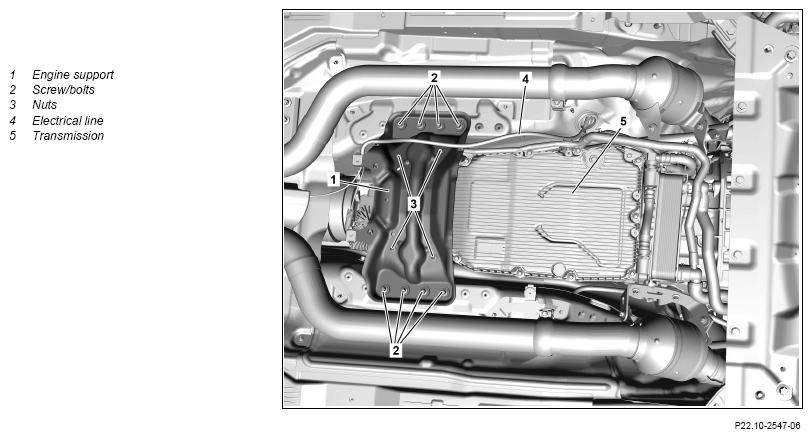

| 3 | Prop up transmission (5) | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount Unclip electrical line (4) on engine support (1) | WS01.00-P-0092B | ||
| 5 | Unscrew nuts (3) | *BA22.10-P-1004-03N | |
| 6 | Remove screw/bolts (2) and remove engine support (1) | Never use an impact wrench/driver or compressed air tools for unscrewing or screwing in the screw/bolts (2). Otherwise the threads can get damaged. |
|
| *BA22.10-P-1005-03N | |||
| 7 | Install in the reverse order |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 213 with engine 177 | ||
|---|---|---|---|---|
| BA22.10-P-1004-03N | Rear engine mount to engine support | M6 | Nm | 18 |
| M8 | Nm | 30 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 213 with engine 177 | |||
|---|---|---|---|---|---|
| BA22.10-P-1005-03N | Bolt, rear engine support to body | M10 | Stage 1 | Nm | 30 |
| Stage 2 | Nm | 50 | |||
