Adjust Camber And Caster At The Front Axle - AR40.20-P-0263LW

Model 205 (except 205.064/086/087/264/286/287/364/386/387/464/486/487)

Model 213 (except 213.064/088/089/264/288/289)

Model 253 (except 253.364/388/389/964/988/989)

Model 293

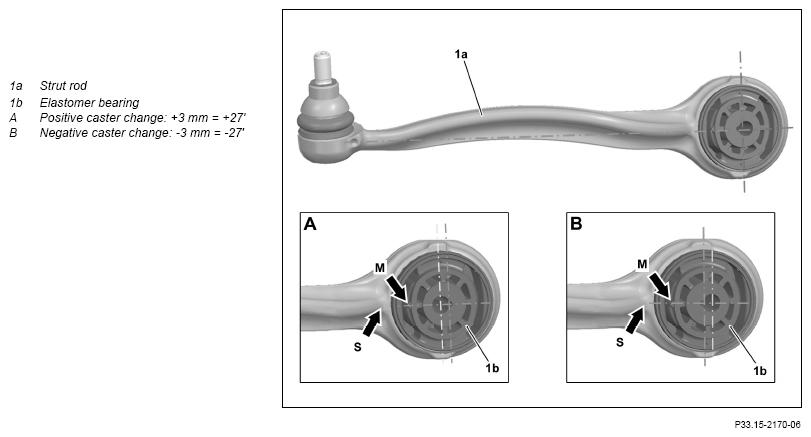

Model 205, 213 except code M005 (4MATIC), shown on left strut rod (1a)

Courtesy of MERCEDES-BENZ USA

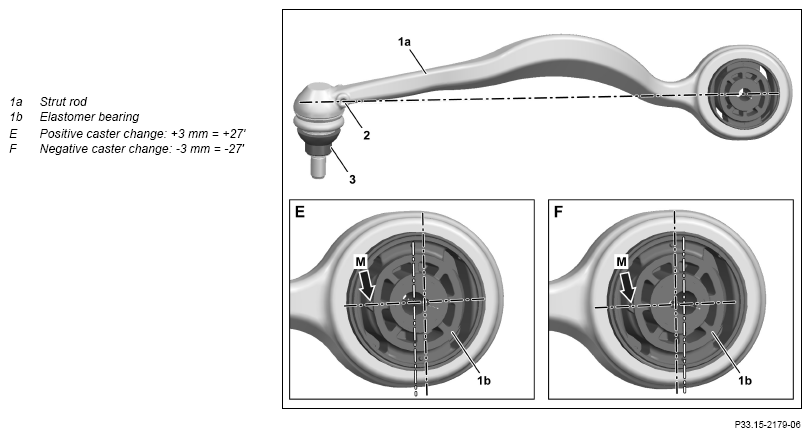

Model 205, 213 with code M005 (4MATIC), model 253, model 293 shown on left strut rod (1a)

Courtesy of MERCEDES-BENZ USA

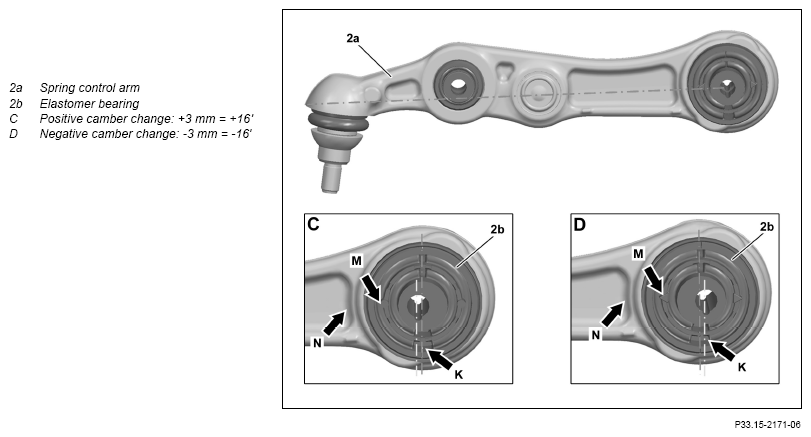

Model 205, 213 except code M005 (4MATIC), shown on left spring control arm (2a)

Courtesy of MERCEDES-BENZ USA

Model 205, 213 with code M005 (4MATIC), model 253, model 293 shown on left spring link (2a)

Courtesy of MERCEDES-BENZ USA

	Check
1	Carry out input measurement.		AR40.20-P-0200LW
2	Compare determined values with the specified values.	Assign suspension data Model 293	AR40.20-P-0203EQC
		Assign suspension data Model 213 (except 213.064/088/089/264/288/289)	AR40.20-P-0203LWA
		Assign suspension data Model 253 (except 253.364/388/389/964/988/989)	AR40.20-P-0203LWB
		Assign suspension data Model 205 (except 205.064/086/087/264/286/287/364/386/387/464/486/487)	AR40.20-P-0203LWC
	Adjust
3	Remove spring link (2a) from front axle.	For camber correction.	AR33.15-P-0170LW
4	Install elastomer bearing (2b) for camber correction.	For camber correction. Model 205 (except 205.064/086/087/264/286/287/364/386/387/46 4/486/487) with code M005 (4MATIC) Model 213 (except 213.064/088/089/264/288/289) with code M005 (4MATIC) Model 253 (except 253.364/388/389/964/988/989) Model 293	AR33.15-P-0170-02LWX
		Model 205 (except 205.064/086/087/264/286/287/364/386/387/46 4/486/487) except code M005 (4MATIC) Model 213 (except 213.064/088/089/264/288/289) except code M005 (4MATIC)	AR33.15-P-0170-02LW
		Model 205 (except 205.064/086/087/264/286/287/364/386/387/46 4/486/487) except code M005 (4MATIC) Model 213 (except 213.064/088/089/264/288/289) except code M005 (4MATIC) Extraction and insertion tool	Fig 3
		Model 205 (except 205.064/086/087/264/286/287/364/386/387/46 4/486/487) with code M005 (4MATIC) Model 213 (except 213.064/088/089/264/288/289) with code M005 (4MATIC) Model 253 (except 253.364/388/389/964/988/989) Model 293 Sleeve	Fig 4
		Model 205 (except 205.064/086/087/264/286/287/364/386/387/46 4/486/487) with code M005 (4MATIC) Model 213 (except 213.064/088/089/264/288/289) with code M005 (4MATIC) Model 253 (except 253.364/388/389/964/988/989) Model 293 Extraction and insertion tool	Fig 2
		Model 205 (except 205.064/086/087/264/286/287/364/386/387/464/486/487) except code M005 (4MATIC) Model 213 (except 213.064/088/089/264/288/289) except code M005 (4MATIC) Press-in tool	Fig 1
		Model 205 (except 205.064/086/087/264/286/287/364/386/387/464/486/487) except code M005 (4MATIC) Model 213 (except 213.064/088/089/264/288/289) except code M005 (4MATIC) Extraction and installation tool	Fig 6
5	Install spring link (2a) onto front axle.	For camber correction.	AR33.15-P-0170LW
6	Remove strut rod (1a) from front axle.	For caster correction. Model 293	AR33.15-P-0160EQ
		Model 205 (except 205.064/086/087/264/286/287/364/386/387/46 4/486/487) with code M005 (4MATIC) Model 213 (except 213.064/088/089/264/288/289) with code M005 (4MATIC) Model 253 (except 253.364/388/389/964/988/989)	AR33.15-P-0160LWX
		Model 205 (except 205.064/086/087/264/286/287/364/386/387/46 4/486/487) except code M005 (4MATIC) Model 213 (except 213.064/088/089/264/288/289) except code M005 (4MATIC)	AR33.15-P-0160LW
7	Install elastomer bearing (1b) for caster correction.	For caster correction. Model 293	AR33.15-P-0163-01EQ
		Model 205 (except 205.064/086/087/264/286/287/364/386/387/464/486/487) Model 213 (except 213.064/088/089/264/288/289) Model 253 (except 253.364/388/389/964/988/989)	AR33.15-P-0160-02LW
		Plate	Fig 5
		Extraction and installation tool	Fig 6
		Extraction and insertion tool	Fig 2
8	Install strut rod (1a) on front axle.	For caster correction. Model 293	AR33.15-P-0160EQ
		Model 205 (except 205.064/086/087/264/286/287/364/386/387/464/486/487) with code M005 (4MATIC) Model 213 (except 213.064/088/089/264/288/289) with code M005 (4MATIC) Model 253 (except 253.364/388/389/964/988/989)	AR33.15-P-0160LWX
		Model 205 (except 205.064/086/087/264/286/287/364/386/387/464/486/487) except code M005 (4MATIC) Model 213 (except 213.064/088/089/264/288/289) except code M005 (4MATIC)	AR33.15-P-0160LW
	Check
9	Carry out output measurement.	Check vehicle level at front axle after camber and caster adjustment. The vehicle level must match the values determined during the initial measurement.	AR40.20-P-0200LW
