Remove/Install The Suspension Strut - AR32.25-P-1017LW

Model 205 except code 489 (AIRMATIC Dual Control/semi-active air suspension)

Model 213 except code 489 (AIRMATIC Dual Control/semi-active air suspension)

Model 253 except code 489 (AIR BODY CONTROL)

Model 293

Shown on model 205 with CODE M005 (4MATIC)

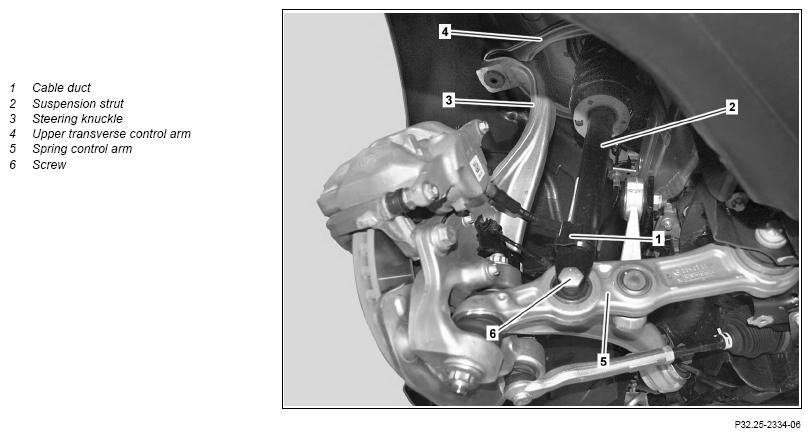

Fig 1: Suspension Strut Components Location - Model 213 Except Code 489 (Shown On Model 205)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

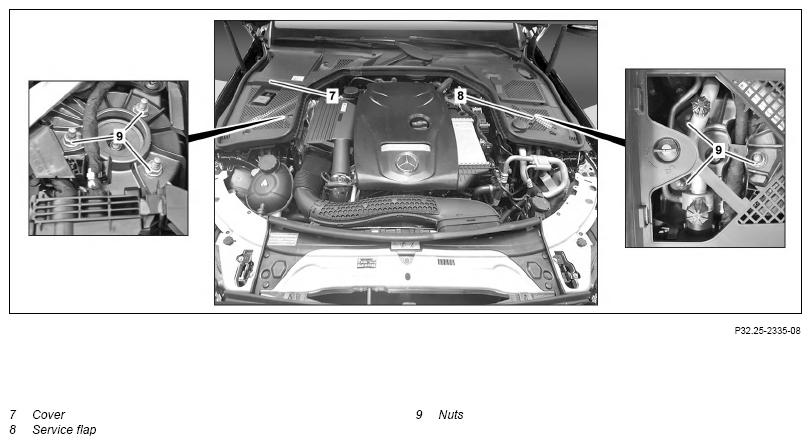

Shown on model 205

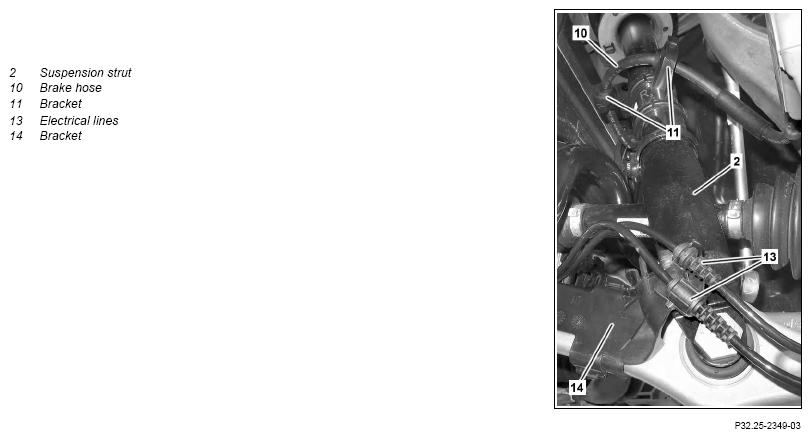

Shown on model 205 with code M005 (4MATIC)

Courtesy of MERCEDES-BENZ USA

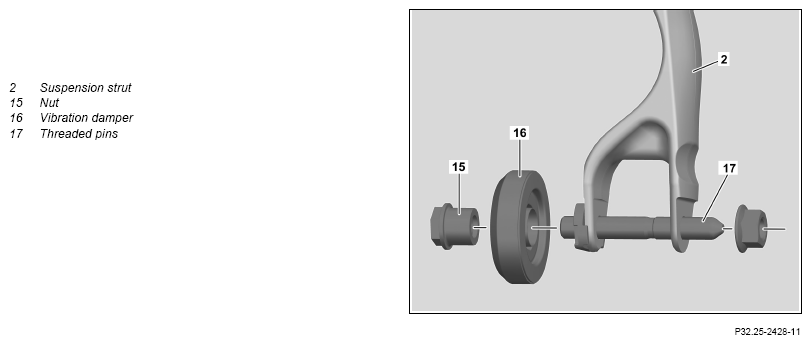

Shown on suspension strut (2) with code M005 (4MATIC) except code 830 (Additional parts for China vehicles)

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove corresponding front wheel.		AR40.10-P-1102A
2	Open cable duct (1) on suspension strut (2) and place to one side with line still attached.	Model 205, 213 except code 489 (AIRMATIC Dual Control/semi-active air suspension) except code M005 (Vehicles with 4MATIC/all-wheel drive)
3	Unhook brake hose (10) from holders (11).	Model 205, 213 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 253 except code 489 (AIR BODY CONTROL) Model 293
4	Disconnect electrical connector at suspension strut (2).	Model 205 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) with code 488 (Steel/air suspension) except code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 213 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) except code 489 (AIRMATIC Dual Control/semi-active air suspension)
5	Unhook electric lines (13) from holder (14) and place to one side.	Model 205, 213 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 253 except code 489 (AIR BODY CONTROL) Model 293
6	Remove nut (15) and take off vibration damper (16).	Model 213 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 830 (China version) If installed. Vibration damper to threaded pin	*BA32.25-P-1004-04P
7	Remove suspension strut (2) at spring link (5).	Model 205 except code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 213 with code 830 (China version) except code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 253 except code 489 (AIR BODY CONTROL) Model 293 Insert screw (6) from rear toward front. Otherwise the brake or the rim may be damaged. Model 213 except code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 830 (China version) Replace screw (6) with threaded pin (17). Model 213 except code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 830 (China version) Installation:  Insert threaded pin (17) from front to rear. Nut, suspension strut to spring control arm	*BA32.25-P-1002-04P
8	Secure steering knuckle (3) against falling down.
9	Remove nut of steering knuckle (3) at upper transverse control arm (4).	Counterhold the ball head and do not use an impact wrench/driver. Otherwise the ball head or steering knuckle (3) may be damaged. Nut, steering knuckle to transverse control arm	*BA33.20-P-1006-01U
10	Remove upper transverse control arm (4) from steering knuckle (3).
11	Lower vehicle.
12	Remove cover (7).	When removing right suspension strut (2).
13	Open service flap (8).	Model 205 except code 489 (AIRMATIC Dual Control/semi-active air suspension) When removing the left suspension strut (2).
14	Remove wiper arms.	Model 205 except code 489 (AIRMATIC Dual Control/semi-active air suspension) If the nuts (9) cannot be accessed through the open service flap (8). When removing the left suspension strut (2).	AR82.30-P-6100LW
15	Remove cover under wiper arms.	Model 205 except code 489 (AIRMATIC Dual Control/semi-active air suspension) If the nuts (9) cannot be accessed through the open service flap (8). When removing the left suspension strut (2).
16	Remove left cover in engine compartment.	Model 213 except code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 253 except code 489 (AIR BODY CONTROL) Model 293 When removing the left suspension strut (2).
17	Remove nuts (9) at suspension strut (2).	Nut, strut to body	*BA32.25-P-1001-04P
18	Remove suspension strut (2) downwards.	Carefully remove suspension strut (2). Otherwise the spring control arm strut on the spring control arm (5) may be damaged.
	Check
19	Check condition of suspension strut (2).	In the event of a problem, ↓ Replace damaged parts on suspension strut (2).	AR32.25-P-1018LW
20	Check condition of suspension strut joint at spring link (5).	In the event of a problem, ↓ Replace spring link (5).	AR33.15-P-0170LW
21	Install in the reverse order.
22	Check and correct headlamp adjustment.	When replacing suspension strut (2) or spring link (5).
		Model 293	AP82.10-P-8260KA
		Model 205 except code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 253 except code 489 (AIR BODY CONTROL)	AP82.10-P-8260E
		Model 213 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AP82.10-P-8260J
