Remove/Install Thrust Arm - AR35.20-P-0113MNE

Model 213.064/088/089/264/288/289

Shown on right side of vehicle

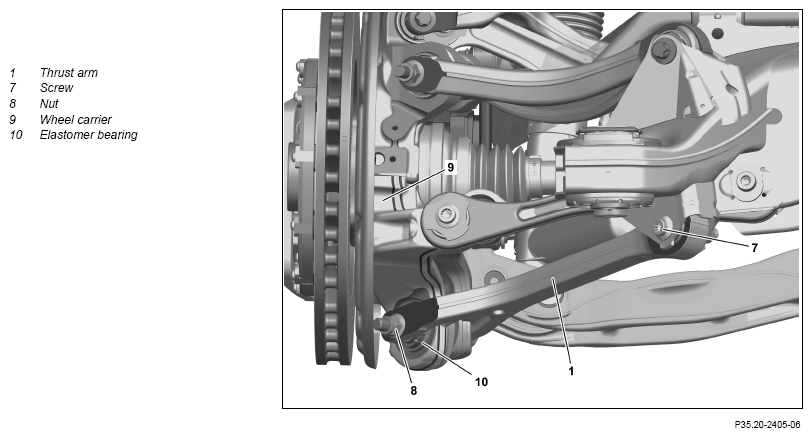

Fig 1: Thrust Arm Components Location - Model 213.064/088/089/264/288/289 (Shown On Right Side Of Vehicle)

Courtesy of MERCEDES-BENZ USA

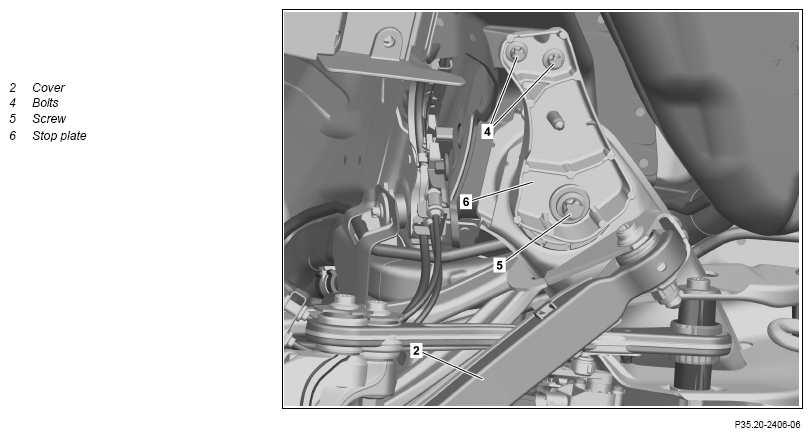

Shown on right side of vehicle on model 213.064

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1.1	Release underfloor paneling in area of stop plate (6)	Model 213.064	AR61.30-P-1001LWE
1.2	Remove underfloor paneling	Model 213.088/089/264/288/289	AR61.30-P-1001LWE
2	Remove diagonal strut	Model 213.088/089/264/288/289
3	Remove bolts (4) from stop plate (6)
4	Support rear axle using an assembly unit mount and mounting plate
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
5	Remove bolt (5) and remove stop plate (6)	Do not use an impact wrench. Otherwise, the threads will be damaged.
6	Unscrew nut from bolt (7) and pull out bolt (7)	The screwdriver bit is to be used when a bolt (7) with a multi-socket tooth profile is fitted. Screwdriver bit	Fig 2
7	Unscrew nut (8) and remove bolt	The screwdriver bit is to be used when a bolt with a multi-socket tooth profile is fitted. Screwdriver bit	Fig 2
8	Remove thrust arm (1)
9	Remove cover (2) from thrust arm (1)	Model 213.064/264
	Check
10	Check elastomer bearing (10) for damage	If there are problems ↓ Replace elastomer bearing (10).
		Model 213.088/089/288/289	AR35.20-P-3403MNE
		Model 213.064/264	AR35.20-P-0105-01LW
		Model 213.064/264 Extraction and insertion tool	Fig 3
11	Check that thrust arm (1) is in good condition and has no signs of damage	If there are problems ↓ Replace the thrust arm (1).
	Install
12	Attach trim (2) to thrust arm (1)	Model 213.064/264
13	Position thrust arm (1)
14	Insert bolt of nut (8) and tighten nut (8)	The screwdriver bit is to be used when a bolt with a multi-socket tooth profile is fitted.
		Bolt, thrust arm to wheel carrier	*BA35.20-P-1002-05J
		Screwdriver bit	Fig 2
15	Insert bolt (7) and tighten nut	The screwdriver bit is to be used when a bolt (7) with a multi-socket tooth profile is fitted.
		Bolt, thrust arm to rear axle carrier	*BA35.20-P-1001-05J
		Screwdriver bit	Fig 2
16	Use compressed air to clean thread of bolt (5) in frame floor assembly and check for correct seating of threaded inserts
17	Position stop plate (6) and screw in bolt (5)	Do not use an impact wrench. Otherwise, the threads will be damaged.
		Self-locking bolt securing front decoupling element of rear axle carrier to frame floor assembly	*BA35.10-P-1001-01H
18	Remove major assembly support and support plate
19	Screw bolts (4) into stop plate (6)	Bolt, stop plate to body	*BA35.10-P-1003-01H
20	Install diagonal strut	Model 213.088/089/264/288/289
		Bolt, rear diagonal strut to spare wheel well/body	*BA61.10-P-1008-01L
21.1	Install underbody paneling	Model 213.088/089/264/288/289	AR61.30-P-1001LWE
21.2	Fasten underfloor paneling in area of stop plate (6)	Model 213.064	AR61.30-P-1001LWE
22	Perform wheel alignment check		AR40.20-P-0200LW

Fig 2: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction And Insertion Tool (204 589 03 43 00)

Courtesy of MERCEDES-BENZ USA
