Remove/Install Rear Strut Rod (Radius Rod) - AR35.20-P-0111MNE
Model 213.088/089/288/289
Left strut rod shown

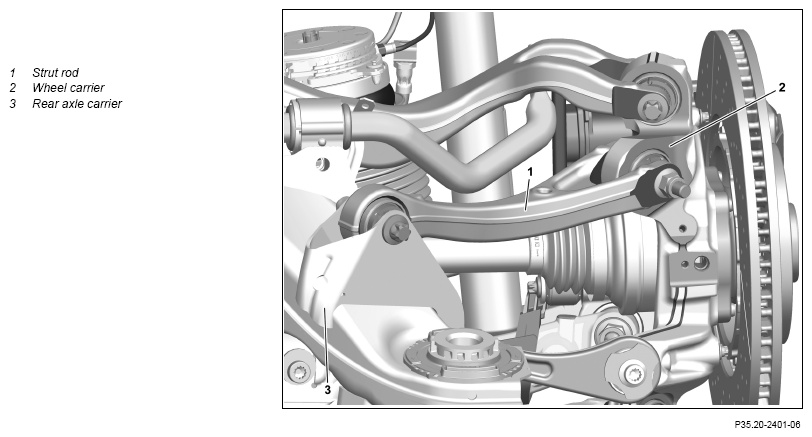

Fig 1: Rear Strut Rod (Radius Rod) Components Location - Model 213.088/089/288/289 (Left Strut Rod Shown)
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove | |||
| 1 | Remove rear axle. | AR35.10-P-0010MNE | |
| 2 | Detach strut rod (1) from wheel carrier (2) | *BA35.20-P-1002-03L | |
| Fig 2 | |||
| 3 | Detach strut rod (1) from rear axle carrier (3) and remove | *BA35.20-P-1001-03L | |
| Fig 2 | |||
| Check | |||
| 4 | Check strut rod (1) for condition and possible damage | When reinstalling strut rod (1). If there are problems ↓ Replace strut rod (1). |
|
| 5 | Check elastomer bearing in wheel carrier (2) for condition and damage | If there are problems ↓ Replace elastomer bearing. |
AR35.20-P-3402MNE |
| Install | |||
| 6 | Mount strut rod (1) onto rear axle carrier (3) | *BA35.20-P-1001-03L | |
| Fig 2 | |||
| 7 | Mount strut rod (1) onto wheel carrier (2) | *BA35.20-P-1002-03L | |
| Fig 2 | |||
| 8 | Install rear axle | AR35.10-P-0010MNE |
STRUT ROD
| Number | Designation | Model 213 | |||
|---|---|---|---|---|---|
| BA35.20-P-1001-03L | Bolt, strut rod to rear axle carrier | Rear axle carrier (aluminum) | Stage 1 | Nm | 80 |
| Stage 2 | ∠° | 90 | |||
| Rear axle carrier (steel) | Stage 1 | Nm | 50 | ||
| Stage 2 | ∠° | 90 | |||
STRUT ROD
| Number | Designation | Model 213 | |||
|---|---|---|---|---|---|
| BA35.20-P-1002-03L | Bolt, strut rod to wheel carrier | M12 | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 90 | |||
