Electric Differential Lock Control Unit, Component Description - GF35.40-P-2000FG
Model 213
up to model year 2021
with code 467 (Electronic locking differential)

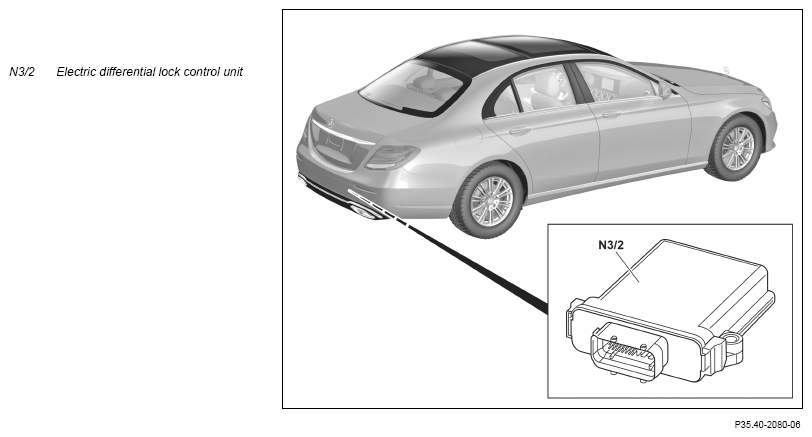

View of vehicle from right rear
Location
The electric differential lock control unit is installed in the spare wheel well in foam.
Task
The electric differential lock control unit operates the multidisk clutch of the differential lock through the electric differential lock actuator (M46/3).
Coding
The electric differential lock control unit can be coded and programmed, i.e. the entire control unit software can be updated.
CAN network
The electric differential lock control unit is connected to the CAN network of the vehicle via the AMG CAN (CAN AMG) and exchanges data with other control units.
Input and output signals
The following input signals are evaluated by the electric differential lock control unit and the corresponding output signals issued:
- Direct input/output signals
- CAN input/output signals
Direct input/output signals
Input and output parameters for the following components are read in or output via direct lines by the electric differential lock control unit:
| Input factors over a direct line | Initial parameters over a direct line | Supplemental information |
|---|---|---|
| Circuit 30 | - | - |
| Circuit 31 | - | - |
| Terminal 15 | - | - |
| - | Differential lock actuator (M46/3) | - |
| Differential lock actuator Hall sensor (M46/3l1) | - | - |
| Differential lock actuator temperature sensor (M46/3b1) | - | - |
CAN input/output signals
Input and output parameters for the following control units are sent or received by the electric differential lock control unit via the CAN:
| Input factors via AMG CAN (CAN AMG) | Output factors via AMG CAN (CAN AMG) | Supplemental information |
|---|---|---|
| Supplemental Restraint System control unit (N2/10) | - | Via vehicle dynamics CAN (CAN H), Electronic Stability Program control unit (N30/4), suspension FlexRay (Flex E) and AMG sports suspension control unit (N3/43) up to model J. 2018 or drive unit control unit (N145/1) from model J. 2018) |
| Electronic Stability Program control unit (N30/4) | Electronic Stability Program control unit (N30/4) | Via suspension FlexRay (Flex E) and AMG sports suspension control unit (N3/43) up to model J. 2018 or drive unit control unit (N145/1) from model J. 2018 |
| Electronic ignition lock control unit (N73) | - | Via user interface CAN (CAN HMI) and AMG sports suspension control unit (N3/43) up to model J. 2018 or drive unit control unit (N145/1) from model J. 2018 |
| ME-SFI control unit (N3/10) | - | Via drive train CAN (CAN C1) and AMG sports suspension control unit (N3/43) up to model J. 2018 or drive unit control unit (N145/1) from model J. 2018 |
| Fully integrated transmission control unit (Y3/8n4) | - | Via drive train CAN (CAN C1) and AMG sports suspension control unit (N3/43) up to model J. 2018 or drive unit control unit (N145/1) from model J. 2018 |
| Diagnostic connector (X11/4) | Diagnostic connector (X11/4) | Via diagnostic CAN (CAN D), electronic ignition lock control unit (N73), user interface CAN (CAN HMI) and AMG sports suspension control unit (N3/43) up to model J. 2018 or drive unit control unit (N145/1) from model J. 2018 |
| - | Instrument cluster (A1) | Via user interface CAN (CAN HMI) and AMG sports suspension control unit (N3/43) up to model J. 2018 or drive unit control unit (N145/1) from model J. 2018 |
| Wiring diagram for differential lock control unit | PE27.19-P-2107-97DBA |
