Remove/Install Front Radial Shaft Sealing Ring On Crankshaft - AR03.20-P-3004MRD
Engine 274.9 in model 213
Engine 274.9 in model 238
Shown on engine 274.9 in model 213 (except 213.050)

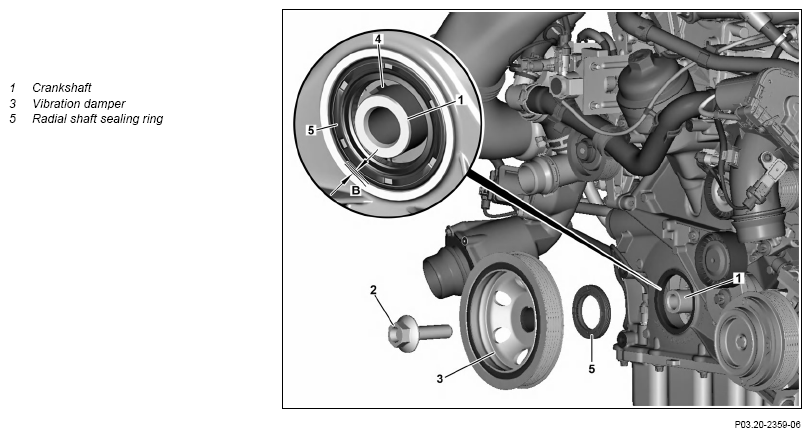

Fig 1: Front Radial Shaft Sealing Ring On Crankshaft Components Location - Engine 274.9 In Model 213
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove | |||
| 1 | Remove vibration damper (3) | AR03.30-P-1800MRD | |
| 2 | Use suitable tool to pry radial shaft sealing ring (5) out of timing case cover | Do not damage crankshaft (1) and timing case cover; use a clean rag as a base to press out Leaks can occur otherwise. |
|
| 3 | Check contact surface of the radial shaft sealing ring (5) on the hub of the vibration damper (3) for score marks and galling | In a case of scorch marks and galling ↓ Replace vibration damper (3). |
|
| Install | |||
| 4 | Install new radial shaft sealing ring (5) | AR03.20-P-3000-01MR | |
| Fig 2 | |||
| 5 | Install vibration damper (3) | AR03.30-P-1800MRD | |
| 6 | Check engine oil level and correct | ||
| AP18.00-P-1811MP |
