Remove/Install Front Cover On Cylinder Head - AR01.30-P-5700MRD

Engine 274.9 in model 213

Engine 274.9 in model 238

Shown on engine 274.9 in model 213.040

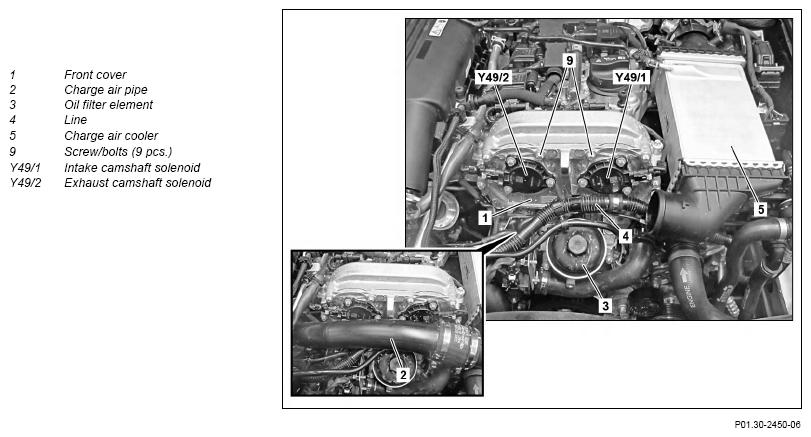

Fig 1: Front Cover On Cylinder Head Components Location - Engine 274.9 In Model 213.04

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
NOTICE	Notes on threaded connections with aluminum screws/bolts		AH00.00-P-0006-01RM
NOTICE	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove upper engine cover	: Only install upper engine cover after the leak test.
2	Remove engine air intake duct upstream of air filter
3	Unscrew cap from expansion reservoir and relieve pressure in the low-temperature circuit
4	Remove charge air pipe (2)	: Check seal for damage and replace if necessary.
5	Remove line (4) from front cover (1)	M6 X 1	*BA00.10-P-1002-04A
6	Remove charge air cooler (5) and place to one side with connected coolant lines		AR09.41-P-0105MRD
7	Release and disconnect electrical connections of the inlet- and exhaust camshaft (Y49/1, Y49/2) solenoids
8	Remove oil filter element (3)
		Engine 274.910 in model 213 Engine 274.920 in model 213 except code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 274.920 in model 238 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AP18.00-P-0101CWI
		Engine 274.920 in model 213 with code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 274.920 in model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AP18.00-P-0101CWE
9	Unscrew screw/bolts (9)	Bolt, front cover to cylinder head/cylinder head cover	*BA01.30-P-1003-01Y
10	Remove front cover (1) and take out Notes on sealant path for front cover to cylinder head xxx	Do not hammer in a tool to pry off between cylinder head cover and front cover (1). The sealing surfaces can be damaged otherwise. : Apply sealant to front cover (1). Observe notes on sealant path for front cover (1).	AH01.30-P-1000-02MR
		Sealant, Loctite 5970, 50 ml	*BR00.45-Z-1013-01A
		Application gun	Fig 2
11	Remove solenoids on inlet and exhaust camshaft (Y49/1, Y49/2)	Only when replacing front cover (1).	AR05.20-P-7295MRD
	Clean
12	Clean sealing surfaces on front cover (1), cylinder head and cylinder head cover	Do not use any sharp-edged tools or abrasive paper. The sealing surfaces can be damaged otherwise.	AR01.00-P-0050-01A
		Loctite 7200	*BR00.45-Z-1038-04A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
13	Install in the reverse order
	Check
14	Check and correct oil level
			AP18.00-P-1811MP
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
15	Perform an engine test run and check engine for proper operation and leak tightness
16	Install upper engine cover

Fig 2: Identifying Application Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA
