Remove/Install Camshaft Solenoid - AR05.20-P-7295MRD
Engine 274.9 in model 213
Engine 274.9 in model 238
| Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | ||
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove upper engine cover. | ||
| 2 | Remove charge air pipe upstream of the charge air cooler. | ||
| 3 | Release and disconnect electrical connector of the intake camshaft adjustment solenoid (Y49/1) or exhaust camshaft adjustment solenoid (Y49/2). | ||

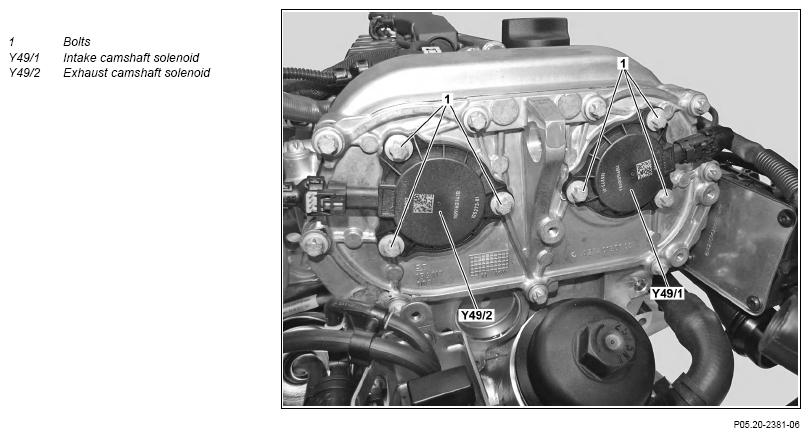

| 4 | Remove screws (1) of the intake camshaft adjustment solenoid (Y49/1) or exhaust camshaft adjustment solenoid (Y49/2). | ||
| *BA15.10-P-1003-03I | |||
| 5 | Remove intake camshaft adjustment solenoid (Y49/1) and exhaust camshaft adjustment solenoid (Y49/2). |
||
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Connect diagnostic device, read out fault memory, and delete. | ||
| Engine 274.9 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 274.9 in model 213 | AD00.00-P-2000-04B | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform engine test run; in doing so, check the engine for proper operation and leak tightness. | ||
| Install | |||
| 9 | Install upper engine cover. |
POSITION SENSOR
| Number | Designation | Engine 274 | ||
|---|---|---|---|---|
| BA15.10-P-1003-03I | Bolt, camshaft solenoid to timing case cover | Stage 1 | Nm | 4 |
| Stage 2 | ∠° | 60 | ||
