(Remove/Install Exhaust System - AR49.10-P-7142OLI)

Engine 654 in model 205, 253

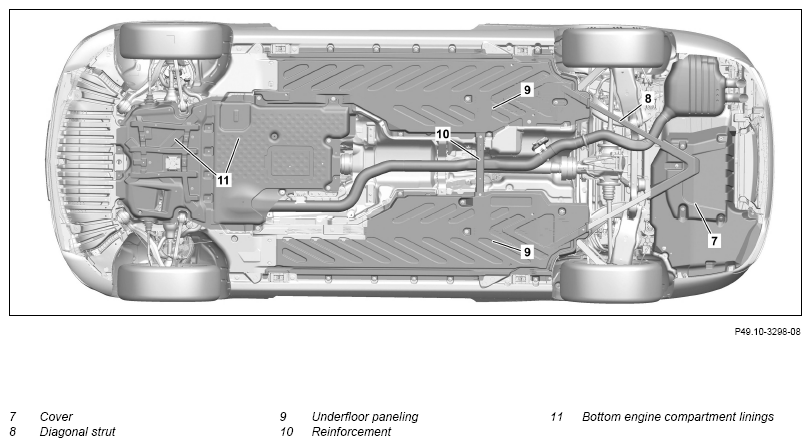

Shown on model 205.4

Courtesy of MERCEDES-BENZ USA

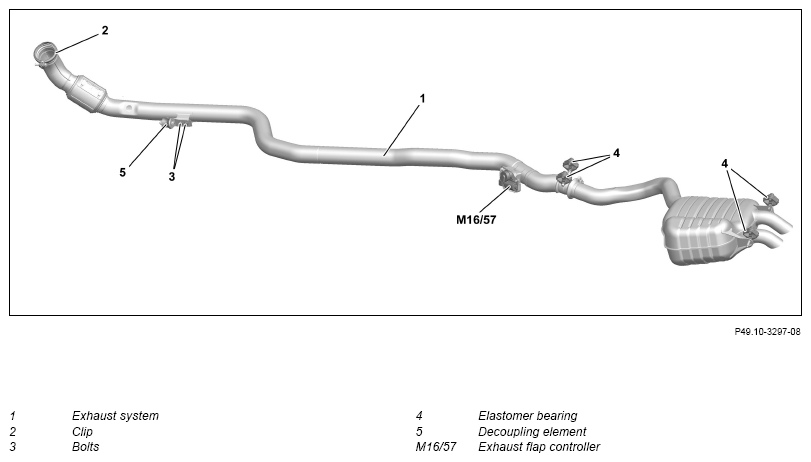

Shown on engine 654 without code M014 (uprated engine)

Courtesy of MERCEDES-BENZ USA

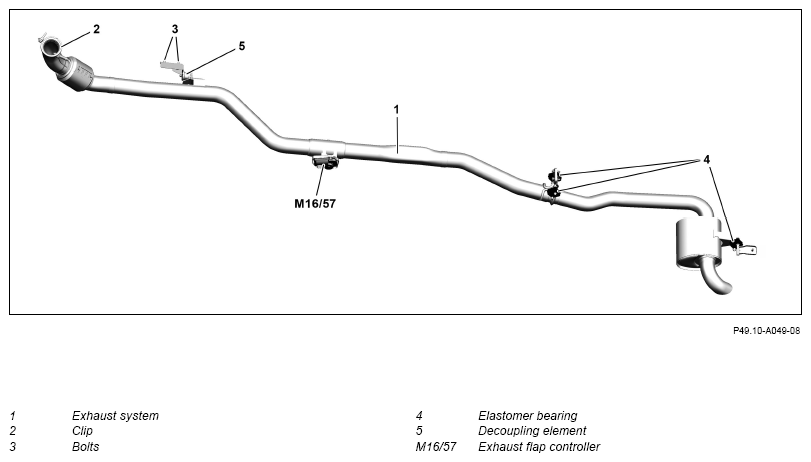

Shown on model 253 with engine 654 without code M014 (uprated engine)

Courtesy of MERCEDES-BENZ USA

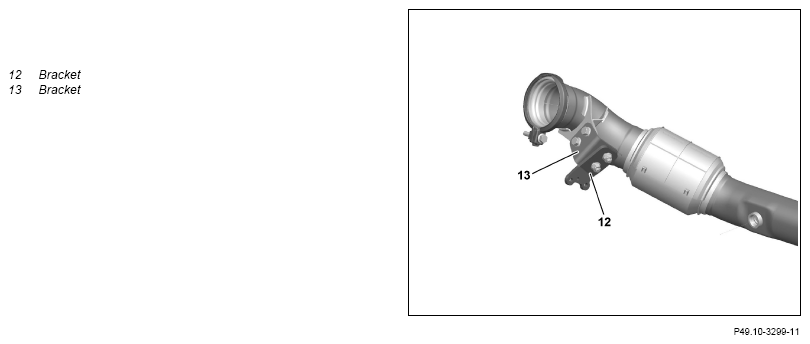

Shown on engine 654 with code M014 (uprated engine)

Courtesy of MERCEDES-BENZ USA

	Risk of burn injuries,  suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out ol the hazard area.	AS49.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove bottom engine compartment linings		AR61.20-P-1105LW
		: Install bottom engine compartment linings (11) only after the leak test.
2	Remove underfloor panelings (9).		AR61.30-P-1001LW
3	Remove reinforcement (10)	Bolt, rear reinforcement to frame floor assembly	*BA61.10-P-1004-01L
4	Remove cover (7).	Engine 654 in model 205.4, 253
5	Remove diagonal strut (8).	Engine 654 in model 205.4
		Bolt, rear diagonal strut to spare wheel well/body	*BA61.10-P-1008-01L
6	Remove bracket (12).	Engine 654 in model 205, 253 with code M014 (Engine uprated)
		M8X1	*BA00.10-P-1004-04A
7	Remove NOx sensor downstream of SCR catalytic converter (N37/8b1) from exhaust system (1).		AR49.20-P-2062OLI
8	Release and disconnect the electrical connection from the temperature sensor downstream of the SCR catalytic converter (B16/27) and remove it from the underbody.	Engine 654 in model 205, 253 with code 971 (Exhaust system with DPF, generation 1.5)	AR49.20-P-1030OLI
9	Release and disconnect the electrical connection for the exhaust gas flap controller (M16/57) and remove the electrical line from the exhaust gas flap controller (M16/57).
10	Support exhaust system (1).
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
11	Remove screws (3).	: Replace screws (3).
		Bolt, bracket for decoupling element to body/exhaust system at front	*BA49.10-P-1011-02H
12	Open clamp (2).	: Replace clamp (2) and seal.
		Clamp to diesel particulate filter and front exhaust system	*BA49.10-P-1003-02H
13	Remove exhaust system (1) from the elastomer bearings (4).	: Wet elastomer bearing (4) with lubricant.
		Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
14	Remove exhaust system (1).
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plat		WS26.00-P-3309B
		Aid of helper required.
	Check
15	Check elastomer bearings (4) and decoupling element (5) for wear and damage.	If there are problems: ↓ replace elastomer bearings (4) and decoupling element (5).
		Nut, decoupling element for front exhaust system to bracket	*BA49.10-P-1012-02H
16	Modify bracket (13).	Engine 654 in model 205, 253 with code M014 (Engine uprated) When replacing the exhaust system (1).
		M8X1	*BA00.10-P-1004-04A
17	Change decoupling element (5).	When replacing the exhaust system (1).
		Bolt, bracket for decoupling element to body/exhaust system at front	*BA49.10-P-1011-02H
18	Change the exhaust gas flap controller (M16/57).	When replacing the exhaust system (1).
		Engine 654 in model 205, 253	AR49.10-P-5507OLI
	Clean
19	Remove combustion and corrosion residue at connecting points.
20	Install in the reverse order.
21	Check installation position and clearance of exhaust system (1) and correct if necessary.
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
22	Perform engine test run and check leaktightness of exhaust system (1).
23	Install bottom engine compartment linings (11).		AR61.20-P-1105LW
