Remove/Install Lower Engine Compartment Lining - Ar61.20-P-1105LW

Model 205

Model 253

Shown on model 205 with engine 651

except code 481 (Underbody protection)

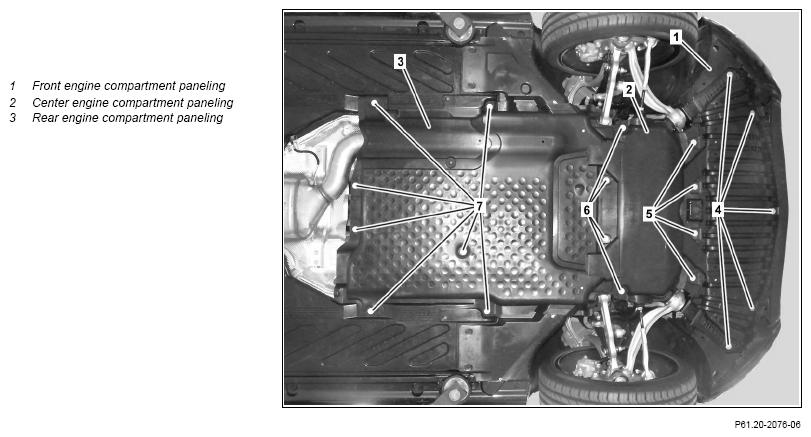

Fig 1: Front Center And Rear Engine Compartment Lining (Model 205, 253)

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  caused by escaping hydrogen or overheating of the fuel tanks when working on the hydrogen system. Risk of frostbite  to body parts caused by escaping gas and by touching component parts carrying gas when emptying fuel tanks. Risk of asphyxiation  caused by inhalation of air diluted by hydrogen. Risk of burn injuries  by coming into contact with an invisible pale blue hydrogen flame.	Model 253.992/993	AS00.00-Z-0030-01B
	Risk of injury  from engine start by remote start function	Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes Model 205, 253 (except 253.992/993)	AS00.00-Z-0024-01A .
	Notes on fuel cell system	Model 253.992/993	AH00.00-P-0022-01RFW .
	Remove/install
1	Ensure that the prerequisites for driving into the workshop are fulfilled. Requirements for driving into the workshop	Model 253.992/993	AH00.00-P-0021-01RFW .
2	Print out the "Protokoll Tanksystem, Formular" (tank system event log form), fill it out, and attach to the vehicle in a place where it is easily visible.	Model 253.992/993
			OF00.00-P-3000-21RFW .
3	Open hood.	Model 205 Model 253 (except 253.992/993) Vehicles with remote start function.
4	Raise vehicle.		AR00.60-P-1002LWG .
5	Remove center engine compartment lining (2)	Model 205 with code 481 (Sump shield) Model 253 with code 430 (Offroad package) Model 253 with code 481 (Sump shield) Screw/bolt, underride guard	*BA61.40-P-1001-01D
6	Remove front engine compartment lining (1).
7	Remove rear engine compartment lining (3).	Model 205 Model 253 (except 253.992/993)
8	Install in the reverse order.
