(Remove/Install Coolant Pipe - AR20.20-P-7450MRD)

Engine 274.9 in Model 213 (except 213.048/049/148)

Engine 274.9 in Model 238 (except 238.348/448)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Notes on coolant		AH20.00-N-2080-01A
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	Remove/install
1	Drain off coolant		AR20.00-P-1142OLC
		Only install lower engine compartment paneling after leak test.
2	Remove upper engine cover	Only install upper engine cover after the leak test.
3	Remove air filter housing		AR09.10-P-1150MRD
4	Remove air intake pipe		AR09.10-P-8131MRD
5	Remove air filter housing holder	M8x1.25	*BA00.10-P-1005-04A
		M6x1	*BA00.10-P-1002-04A
6	Remove ATL heat shield		AR09.40-P-6036MRD

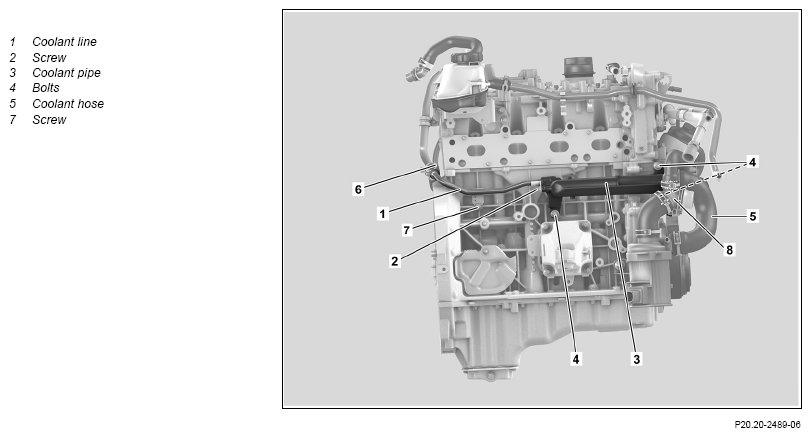

7	Remove coolant hose (5)	Hose clamp pliers	Fig 1
8	Remove screw/bolt (2)	Screw, coolant line to coolant pipe/cylinder head/crankcase/coolant thermostat/coolant hose	*BA20.10-P-1008-01AC
9	Unscrew screw/bolt (7)	Screw, coolant line to coolant pipe/cylinder head/crankcase/coolant thermostat/coolant hose	*BA20.10-P-1008-01AC
10	Remove coolant line (1) from coolant pipe (3)	Replace sealing ring.
11	Remove bolts (4)	Screw/bolt, coolant line to timing case/crankcase	*BA20.20-P-1001-01E
		Set of flexible head wrenches	Fig 2
12	Remove the coolant pipe (3)	Replace sealing ring.
13	Install in the reverse order
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
14	Perform an engine test run and check engine for proper operation and leaktightness
15	Install lower engine compartment paneling		AR61.20-P-1105LWE
16	Install upper engine cover

Fig 1: Identifying Hose Clamp Pliers (003 589 03 37 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Set Of Flexible Head Wrenches (001 589 81 09 00)

Courtesy of MERCEDES-BENZ USA
