Remove/Install Poly-V-Belt Tensioning Device - AR13.25-P-3220MRD
Engine 274.9 in model 213 (except 213.050)
Engine 274.9 in model 238
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Remove/install | |||

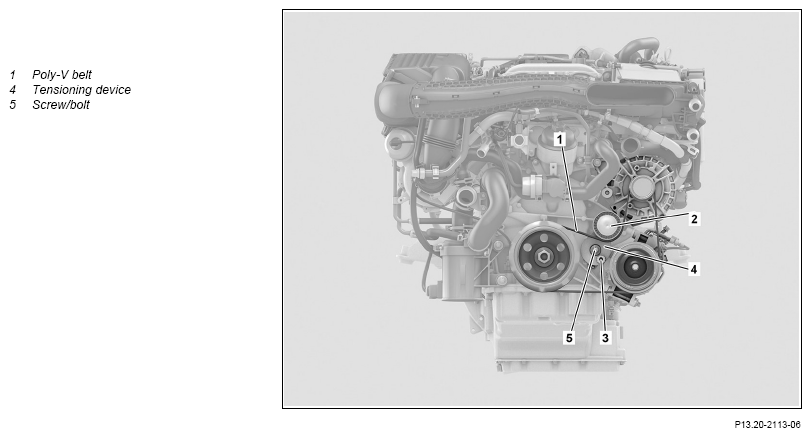

| 1 | Remove the poly-V belt (1) | AR13.22-P-1202MRD | |
| 2 | Remove drift from clamping device (4) | ||
| 3 | Remove screw/bolt (5) and remove clamping device (4) | *BA13.25-P-1003-01Z | |
| 4 | Install in the reverse order |
BELT TENSIONING DEVICE
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA13.25-P-1003-01Z | Bolt, tensioning device to crankcase | Nm | 58 |
