(Remove/Install Center Console - AR68.20-P-2000LWA)

Model 205.0/2/3/4 with transmission 716

Model 213 with transmission 716

Model 253 with transmission 716

Courtesy of MERCEDES-BENZ USA

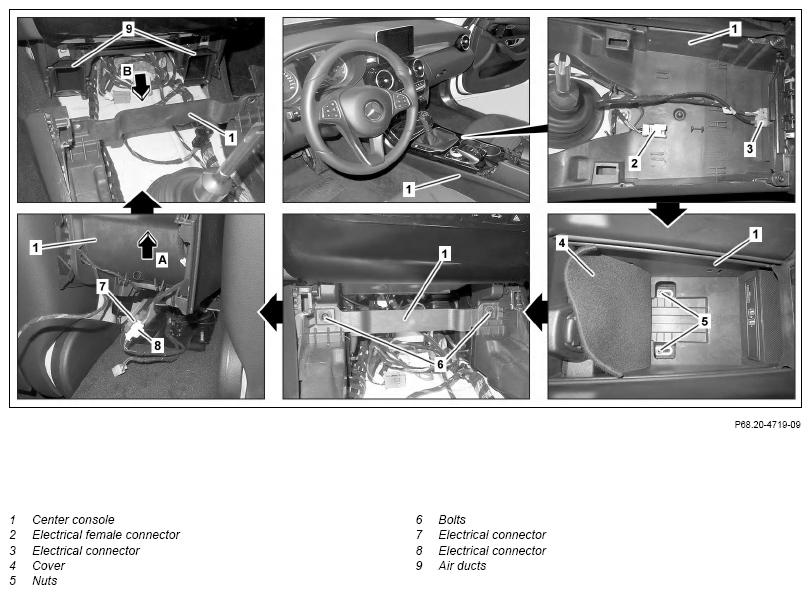

Shown on model 205.0 with code 386 (Comfort telephony)

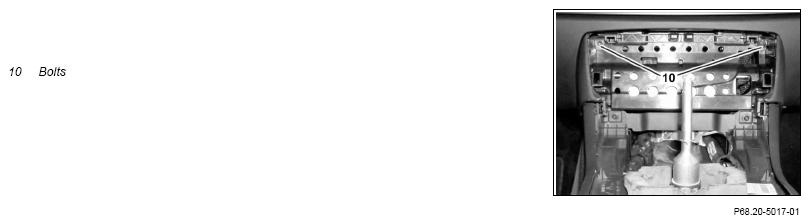

Model 213

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover at center console (1)		AR68.20-P-2350LWA
2	Remove rear cover (1) from center console		AR68.20-P-2358LW
3	Unclip electrical socket (2) from center console (1)	The number can vary according to the equipment.
4	Disconnect electrical connector (3)	The number can vary according to the equipment.
5	Lift paneling (4) in armrest stowage compartment and lay down to side
6	Unscrew nuts (5)
7.1	Remove bolts (6)	Model 205.0/2/3/4 with transmission 716 Model 253 with transmission 716
7.2	Remove screws (10)	Model 213 with transmission 716
8	Disconnect electrical connectors (7, 8)	Model 205.0/2/3/4 with transmission 716 with code 386 (Comfort telephony) Model 213 with transmission 716 with code 386 (Comfort telephony) Model 253 with transmission 716 with code 386 (Comfort telephony)
9	Lift center console (1) at rear (arrow A) and move out toward rear from air ducts (9) (arrow B)	: Ensure that air ducts (9) are seated correctly.
10	Remove center console (1) upward
11	Install in the reverse order
