Remove/install additional battery relay - AR54.15-P-2000NKB

MODEL 117, 156, 246 up to model year 2015 with CODE B03 (ECO start/stop function)

MODEL 176 up to model year 2015 with CODE B03 (ECO start/stop function)

MODEL 242 with engine 270 up to model year 2015 with CODE B03 (ECO start/stop function)

Shown on model 246

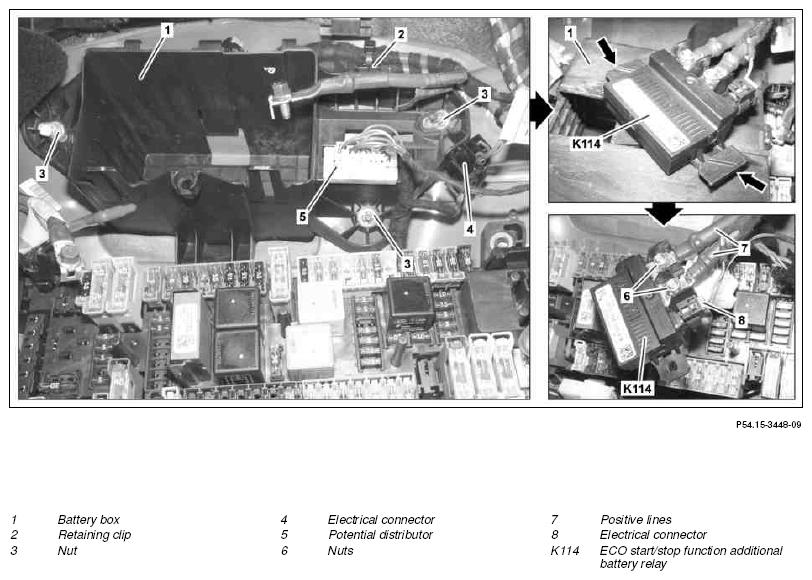

Fig 1: Identifying Additional Battery Relay Remove/Install Components - Shown On Model 246
G10251203NOTESREMOVINGINSTALLINGIMPORTANTTORQUE SPECIFICATIONCourtesy of MERCEDES-BENZ USA
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Disconnect ground line at the on-board electrical system battery   AR54.10-P-0003NKB
2 Remove the auxiliary battery   AR54.10-P-0007NKB
3 Detach fuse box in vehicle interior on passenger side   AR54.21-P-1255-10NKB
4 Unclip potential distributor (5) from battery box (1) IMPORTANT The number of potential distributors (5) depends on the equipment installed.
5 Unclip electrical connection (4) from battery box (1)
6 Unclip retaining clip (2) of positive line from battery box (1)
7 Unscrew nuts (3) of battery box (1)
8 Remove battery box (1) until ECO start/stop function additional battery relay (K114) is accessible
9 Unclip ECO start/stop function additional battery relay (K114) from brackets (arrows) of battery box (1) and remove
10 Separate electrical connection (8) at ECO start/stop function additional battery relay (K114)
11 Unscrew nuts (6) from ECO start/stop function additional battery relay (K114) and remove positive lines (7) TORQUE SPECIFICATION Nut, positive line to fuse and relay module in interior *BA54.15-P-1003-01I
12 Install in the reverse order
FUSE AND RELAY BOX

Number Designation Model 117 Model 156
BA54.15-P-1003-01I Nut, positive line to fuse and relay module in interior M6 Nm 8 8
M8 Nm 16 16
FUSE AND RELAY BOX

Number Designation Model 176 Model 242
BA54.15-P-1003-01I Nut, positive line to fuse and relay module in interior M6 Nm 8 8
M8 Nm 16 16
FUSE AND RELAY BOX

Number Designation Model 246
BA54.15-P-1003-01I Nut, positive line to fuse and relay module in interior M6 Nm 8
M8 Nm 16
