Remove/install desiccant cartridge - AR83.30-P-6521RK
MODEL 231
MODIFICATION NOTES
| 05.10.2016 | Safety note added | AS83.00-Z-0006-01A | |
| 30.09.2016 | Safety note added | AS83.00-Z-0007-01A |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 231 except code 2U8 (Alternative refrigerant) |
AS83.00-Z-0006-01A | |
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 231 with code 2U8 (Alternative refrigerant) |
AS83.00-Z-0007-01A | |
| Procedure for a damaged or leaky air conditioning system | AH83.30-N-0004-01A | ||
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01A | ||
| Notes on handling refrigerant R1234yf | Model 231 with code 2U8 (Alternative refrigerant) |
AH83.30-P-0003-02A | |
| Notes on handling refrigerant R134a | Model 231 except code 2U8 (Alternative refrigerant) |
AH83.30-N-0003-01A | |
| Remove | |||
| 1 | Drain air conditioning system | AR83.30-P-1760YF | |

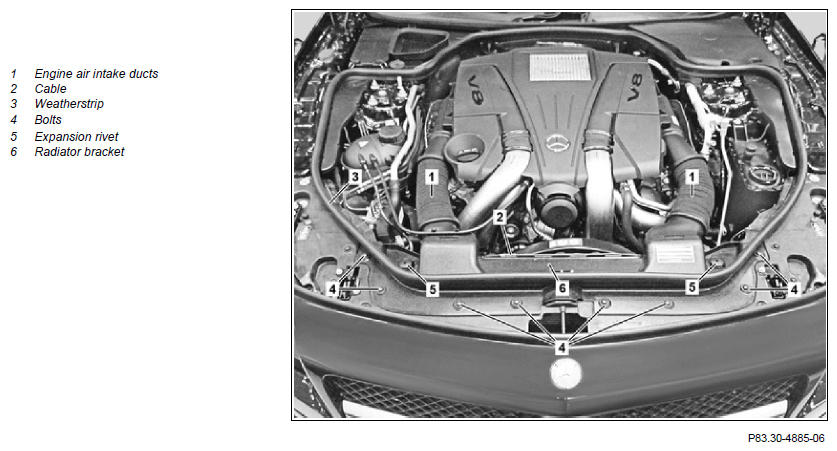

| 2 | Remove both engine air intake ducts (1) | ||
| 3 | Unclip cable (2) for engine hood release | ||
| 4 | Remove weatherstrip (3) in front area | ||
| 5 | Remove bolts (4) | ||
| 6 | Remove left and right expansion rivet (5) | ||
| 7 | Remove cooler holder (6) | ||

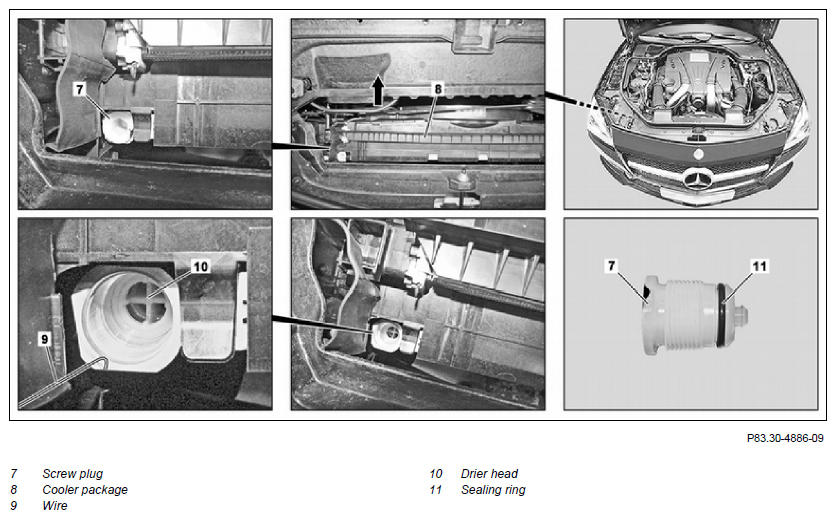

| 8 | Push radiator package (8) in direction of arrow until screw plug (7) is accessible and remove screw plug (7) | ||
| 9 | Make your own piece of wire (9) | ||

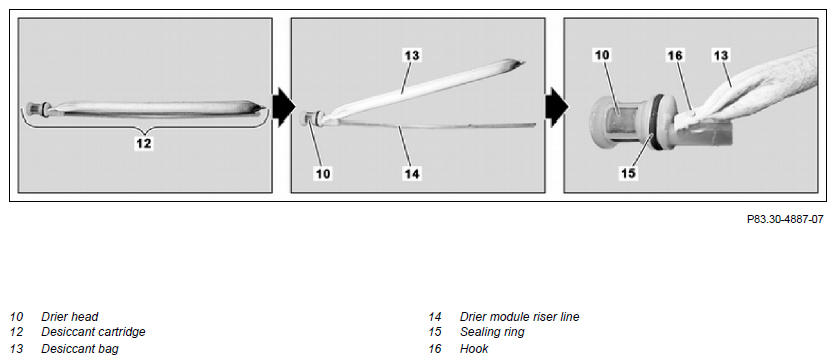

| 10 | Insert your self-made wire (9) into opening of drier head (10), hook it in and remove desiccant cartridge (12) | ||
| Install | |||
| 11 | Install new desiccant cartridge (12) | If packaging of new desiccant cartridge (12) is damaged. ↓ Dispose of desiccant cartridge (12) and replace it. |
|
| 12 | Tighten screw plug (7) | ||
| 13 | Install cooler holder (6) | ||
| 14 | Install left and right expansion rivet (5) | ||
| 15 | Tighten bolts (4) | ||
| 16 | Install weatherstrip (3) | ||
| 17 | Clip in cable (2) for engine hood release | ||
| 18 | Install both engine air intake ducts (1) | ||
| Check | |||
| 19 | Evacuate the air conditioning system, refill it, and then check the system to make sure that it functions correctly and does not leak | AR83.30-P-1760YF |
