Remove/install radiator - AR20.20-P-3865RKC
ENGINE 279 in MODEL 231
| Remove/install | |||
|---|---|---|---|
| Risk of injury to skin and eyes suffering scalding from contact with hot contemporary. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 1 | Remove fan unit | AR20.40-P-5050RKC | |
| 2 | Drain coolant | AR20.00-P-1142RKC | |

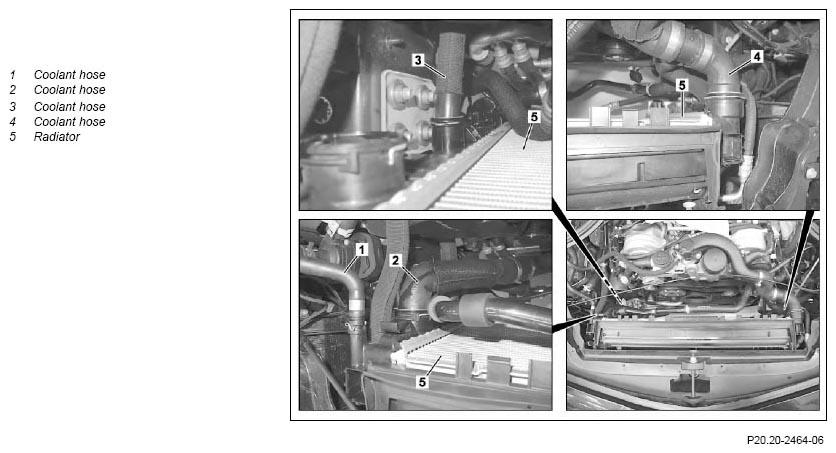

| 3 | Disconnect coolant hoses (1, 2, 3, 4) from cooler (5) | AR09.41-P-1311-01AL | |

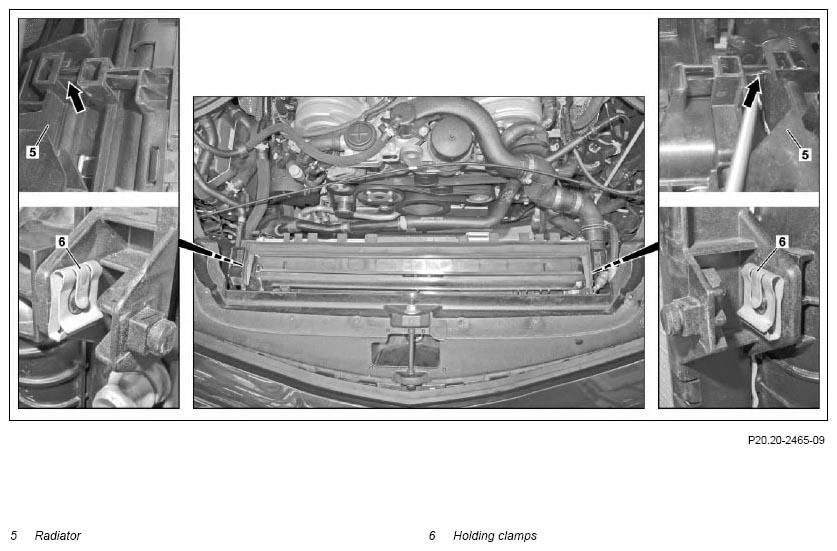

| 4 | Unclip radiator (5) on right and left in place (arrow). | ||
| 5 | Unclip holding clamps (6) on upper right and left on radiator (5) | ||
| 6 | Take out radiator (5) in an upward direction | ||
| 7 | Install in the reverse order | ||
| 8 | Check cooling system for leaktightness | AR20.00-P-1010RKC | |
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform an engine test run and check cooling system for function and leaktightness |
