Remove/install fan unit - AR20.40-P-5050RKC
ENGINE 279 in MODEL 231
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| 1.1 | Switch off ignition and detach transmitter key (A8/1) from electronic ignition lock control unit (N73). | Except code 889 (Keyless-Go) | |
| 1.2 | Switch off ignition and detach KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73). | With code 889 (KEYLESS-GO) | |
| 2 | Open engine hood | ||

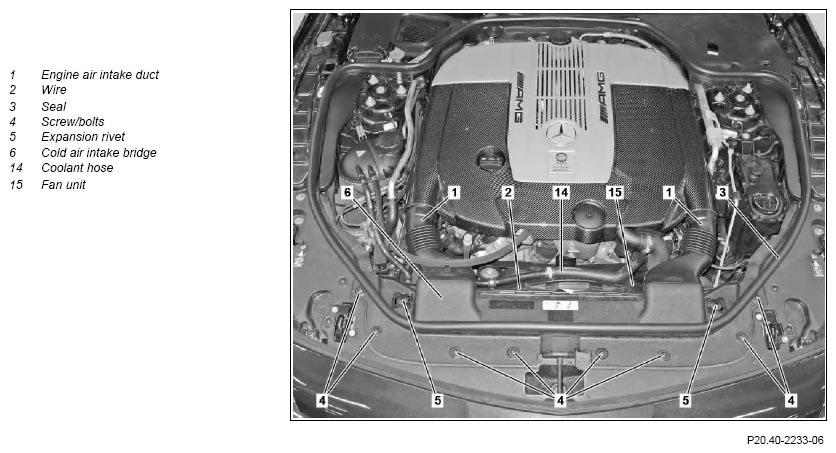

| 3 | Remove engine air intake ducts (1) | ||
| 4 | Unclip wire (2) for hood unlocking | ||
| 5 | Remove seal (3) in front area | ||
| 6 | Remove screw/bolts (4) | ||
| 7 | Remove left and right expansion rivet (5) | ||
| 8 | Remove cold air intake crossmember (6) | ||
| 9 | Remove front section of lower engine compartment paneling | AR61.20-P-1105RK | |

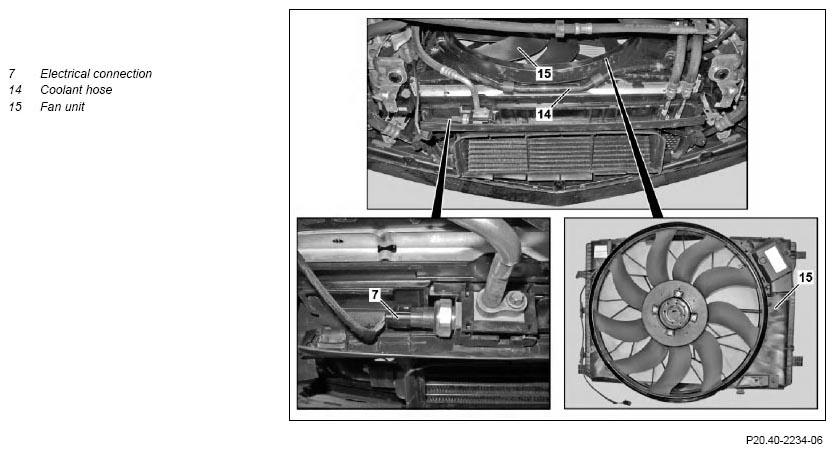

| 10 | Disconnect electrical connections (7, 8) | ||

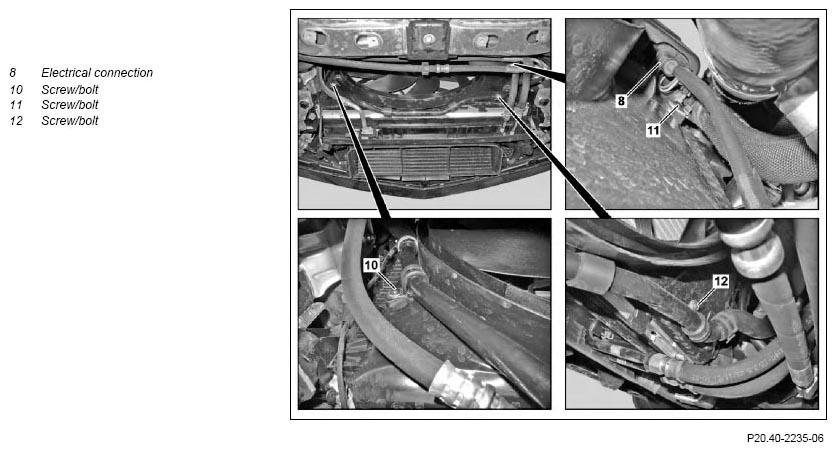

| 11 | Remove screw/bolts (10, 11, 12) | ||
| 12 | Remove coolant hose (14) from fan unit (15) | ||

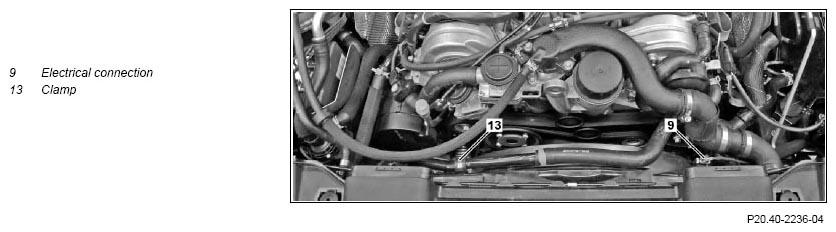

| 13 | Disconnect Electrical connection (9) | ||
| 14 | Loosen clamp (13) | ||
| 15 | Remove fan unit (15) in the upward direction | ||
| 16 | Install in the reverse order |
