Remove/install low temperature water circuit radiator - AR09.41-P-6935RKC
ENGINE 279 in MODEL 231
| Remove/install | |||
| 1 | Remove engine radiator | AR20.20-P-3865RKC | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| 2 | Drain coolant | AR09.41-P-6834RKC | |
| Notes on coolant | AH20.00-N-2080-01A | ||

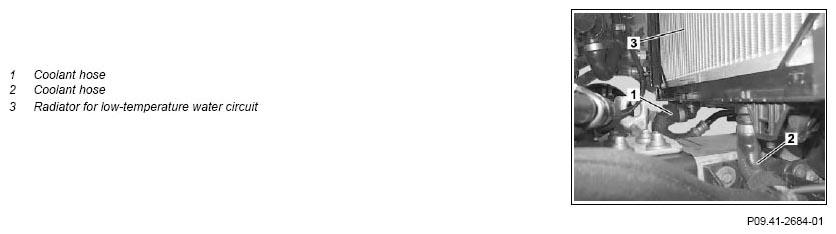

| 3 | Detach coolant hoses (1, 2) at cooler for low-temperature water circuit (3) | ||

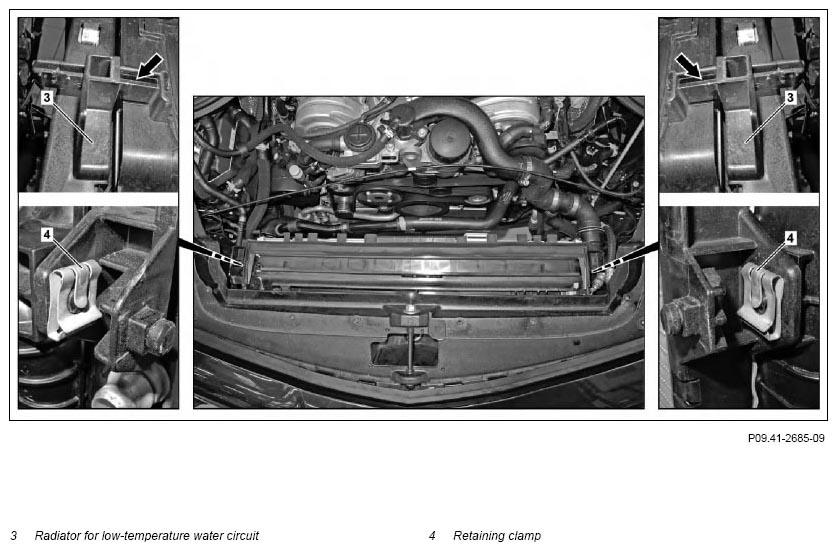

| 4 | Remove retaining clamps (4) between radiator for low-temperature water circuit (3) and condenser | ||
| 5 | Unclip radiator for low-temperature water circuit (3) (arrow) | ||
| 6 | Remove radiator for low-temperature water circuit (3) upwards | ||
| 7 | Install in the reverse order | ||
| 8 | Venting air from low-temperature circuit | AR20.00-P-1145H | |
| Check | |||
| 9 | Check low-temperature circuit cooling system for leaktightness | AR09.41-P-1010RKC | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Carry out an engine test run, checking the low-temperature circuit for proper operation and leaktightness |
