Remove/Install Rear Body Acceleration Sensor - AR32.22-P-0005RG

Model 190.3

With Code 479 (AMG RIDE CONTROL sports suspension)

With Code M032 (Black Series version)

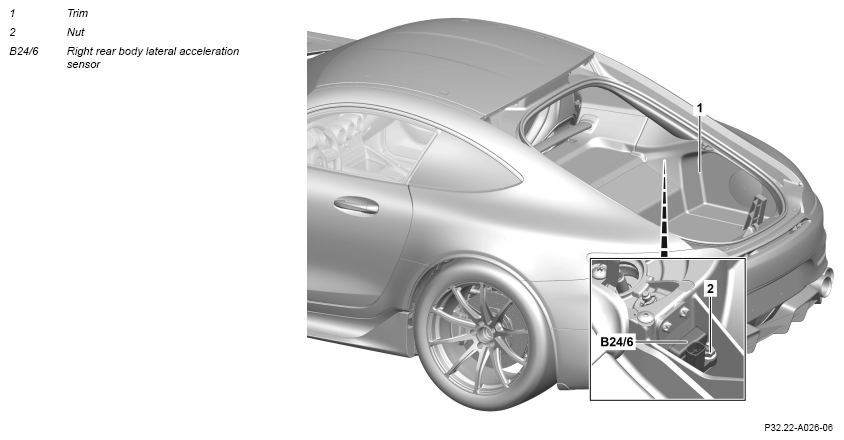

Fig 1: Rear Body Acceleration Sensor Components Location - Model 190.3 With Code 479, M032

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Remove trim (1).		AR68.30-P-4800RG
3	Release and disconnect electrical connector from right rear body acceleration sensor (B24/6).
4	Remove nut (2).
5	Remove right rear body acceleration sensor (B24/6).
6	Install in the reverse order.
