Remove/Install Expansion Valve - AR83.30-P-5520RQ
Model 190
Model 197
MODIFICATION NOTES
| 19.10.2016 | "Technical note" added | AH83.30-N-0004-01A | |
| 04.10.2016 | Safety note added | AS83.00-Z-0006-01A | |
| 28.09.2016 | Safety note added | AS83.00-Z-0007-01A | |
| 28.09.2016 | Safety note added | AS83.00-Z-0001-01A | |
| 28.09.2016 | "Technical note" added | AH83.30-P-0005-01A | |
| 28.09.2016 | General note added | AH83.30-N-0003-01A | |
| 28.09.2016 | General note added | AH83.30-P-0003-02A |
Shown on model 197
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 190 with code 2U8 (Alternative refrigerant) |
AS83.00-Z-0007-01A | |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 190 except code 2U8 (Alternative refrigerant) Model 197 |
AS83.00-Z-0006-01A | |
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Notice | Procedure for a damaged or leaky air conditioning system | AH83.30-P-0004-01KOA | |
| Notes on handling refrigerant R1234yf | Model 190 with code 2U8 (Alternative refrigerant) |
AH83.30-P-0003-02A | |
| Notes on handling refrigerant R134a | Model 190 except code 2U8 (Alternative refrigerant) Model 197 |
AH83.30-P-0003-01KOA | |
| Remove/install | |||
| 1 | Drain air conditioning system | AR83.30-P-1760RQ | |

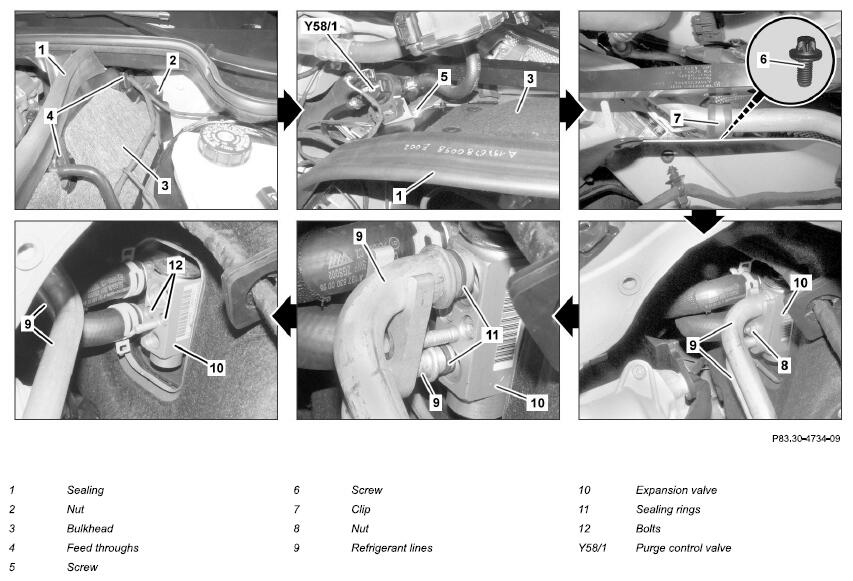

| 2 | Remove sealing (1) at bulkhead (3) | ||
| 3 | Unscrew nut (2) | ||
| 4.1 | Unhook purging switchover valve (Y58/1) and place to one side with electrical lines connected | Model 197 | |
| 4.2 | Unhook left purge switchover valve, or right purge switchover valve and place to one side with electrical lines connected | Model 190 | |
| 5 | Remove bolt (5) | ||
| 6 | Detach bulkhead (3) and place to one side | ||
| 7 | Remove bolt (6) | ||
| 8 | Unscrew nut (8) | ||
| 9 | Pull out refrigerant lines (9) at expansion valve (10) | ||
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| 10 | Seal openings at expansion valve (10) and refrigerant lines (9) with suitable stop plugs | The refrigerant lines (9) and expansion valve (10) openings must be sealed using suitable stop plugs. Otherwise, penetrating dirt and moisture will damage the air conditioning system. |
|
| Fig 2 | |||
| 11 | Remove screws/bolts (12) and remove expansion valve (10) | ||
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
To avoid jamming of the expansion valve (10). |
|||

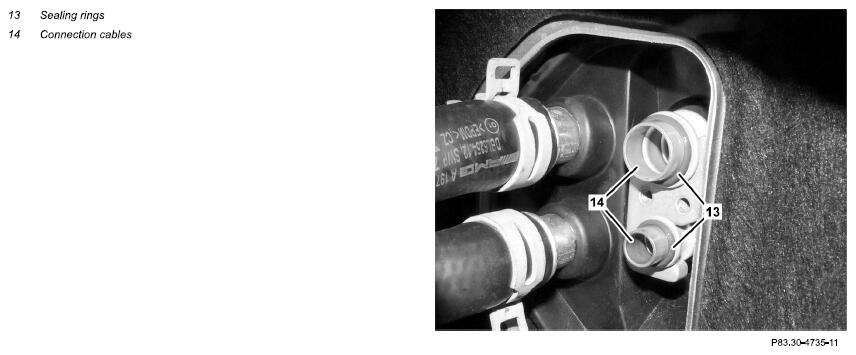

| 12 | Seal connection lines (14) with suitable stop plugs | Only if expansion valve (10) is not reinstalled immediately. Otherwise, penetrating dirt and moisture will damage the air conditioning system. |
|
| Fig 2 | |||
| 13 | Install in the reverse order | ||
| Check | |||
| 14 | Evacuate air conditioning system, refill it, and then check the system to make sure that it functions correctly and does not leak | AR83.30-P-1760RQ |
