Remove/Install Tensioning Cables Of Roof Lining - AR77.33-P-2500LWR

WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 205.4, 238.4

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury when performing check and repair work in area of roll bar	Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects.	AS91.00-Z-0003-01LCA
	Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	General information on riveting		AH60.00-P-0003-01N
	Check

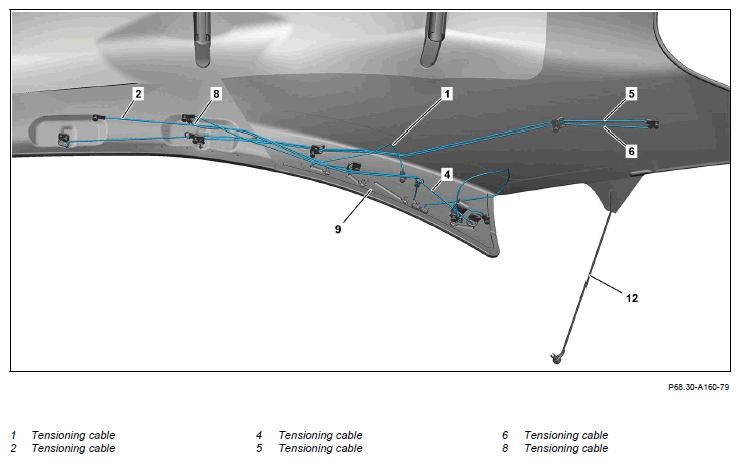

1	Perform test of soft top mechanical components and check tensioning cables (1, 2, 3, 4, 5, 6, 7, 8) for damage.	Always complete the work described on one side of the vehicle first. Otherwise, the tensioning cables (1, 2, 3, 4, 5, 6, 7, 8) will possibly be routed incorrectly, as the assembled side of the vehicle is to be used as a reference. Always replace damaged tensioning cables (1, 2, 3, 4, 5, 6, 7, 8) on both sides of vehicle, even in the case of damage to only one side. If damage is present, → Replace respective tensioning cables (1, 2, 3, 4, 5, 6, 7, 8).
	Remove/install tensioning cables (1, 2, 3, 4, 5, 6, 7, 8)

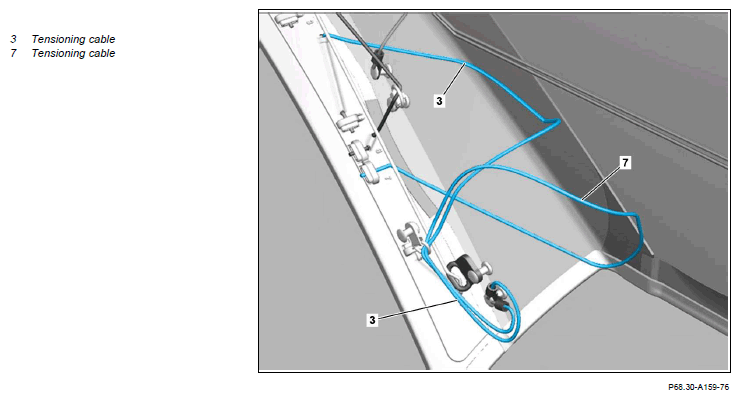

2	Remove and route tensioning cable (7).		AR77.33-P-2501-01A
		Commercially available devices/tools riveter
3	Remove and route tensioning cables (4, 8).		AR77.33-P-2501-01B
		Commercially available devices/tools riveter
4	Remove and route tensioning cable (2).		AR77.33-P-2501-01C
		Commercially available devices/tools riveter
5	Remove and route tensioning cable (1).		AR77.33-P-2501-01D
		Commercially available devices/tools riveter
6	Remove and route tensioning cable (5).		AR77.33-P-2501-01E
		Commercially available devices/tools riveter
7	Remove and route tensioning cable (6).		AR77.33-P-2501-01F
		Commercially available devices/tools riveter
8	Remove and route tensioning cable (3).		AR77.33-P-2501-01G
		Commercially available devices/tools riveter
	Check
9	Perform test of soft top mechanical components and check roof lining is correctly seated when soft top is closed.
