Remove/Install Soft Top Tension Cable - AR77.33-P-1005LWR
WARNING: This page is about a different car, the 2023 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 S AMG, 2021 Mercedes-Benz C63 AMG, 2020 Mercedes-Benz C63 S AMG, and 2020 Mercedes-Benz C63 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
Model 238.4
Shown on left side of vehicle
Shown on left side of vehicle
Shown on left side of vehicle
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove paneling from soft top at front. | AR77.31-P-1010LWR | |
| 2 | Move soft top to repair position R3. | AR77.30-P-1030LWR | |

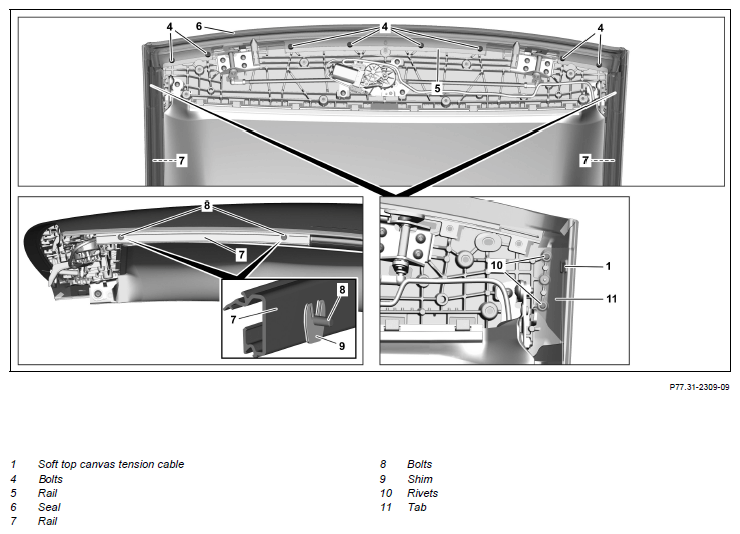

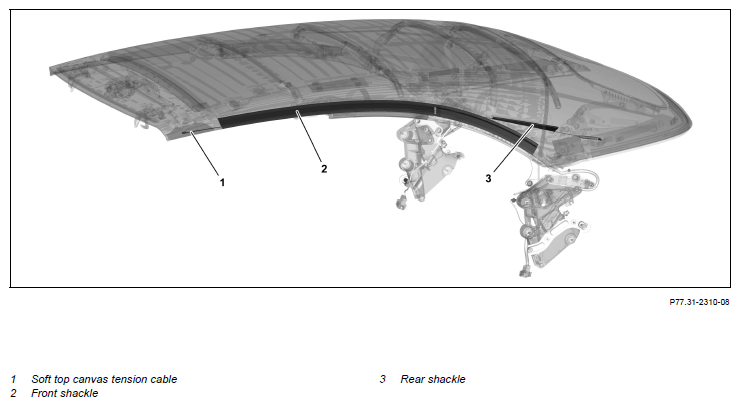

| 3 | Mark installation position of bolts (4) on strip (5). | ||
| 4 | Unscrew bolts (4) from strip (5). | ||
| 5 | Remove seal (6) on outer left and right on rails (7) and remove together with strip (5). | ||
| 6 | Mark installation position of bolts (8) on rail (7) | ||
| 7 | Remove bolts (8) from rail (7) and remove rail (7). | ||
| 8 | Knock off rivets (10) and remove rivet residues. | ||
| 9 | Loosen shackle (11). | ||
| 10 | Remove adhesive strip above end of cable of soft top canvas tensioning cable (1) and unhook cable end. | ||
| 11 | Pull soft top canvas tensioning cable (1) out of front shackle (2) toward rear (arrow A). | ||
| 12 | Move soft top to repair position R2. | AR77.30-P-1030LWR | |

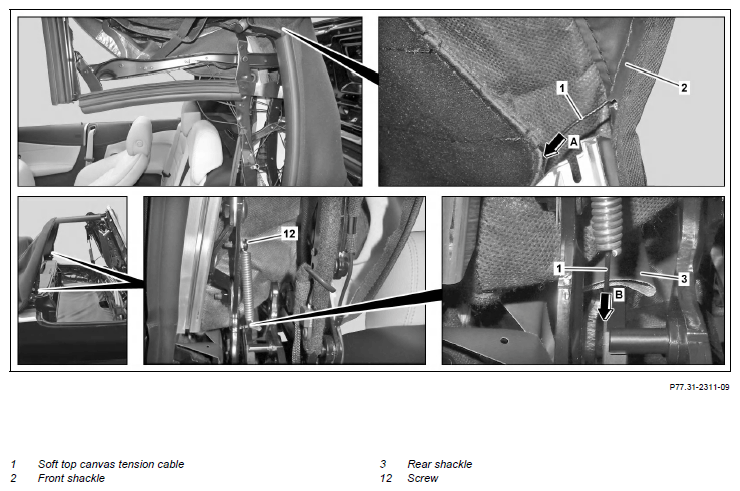

| 13 | Remove screw (12). | ||
| 14 | Pull soft top canvas tensioning cable (1) out of rear shackle (3) toward rear (arrow B). | ||
| 15 | Install in the reverse order. |
