Remove/Install Low Temperature Water Circuit Radiator - AR09.41-P-6935MNB
Engine 178 in model 190 (except 190.381)
| Remove/install | |||
| 1 | Remover radiator package | Engine 178 in model 190 (except 190.381) | AR20.20-P-3865MNB |

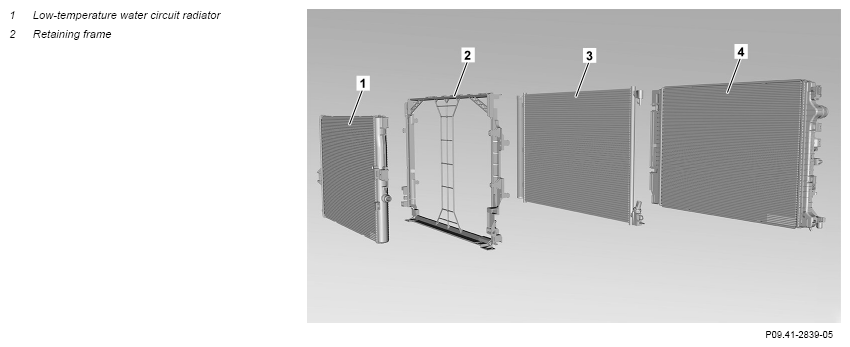

| 2 | Unclip low temperature water circuit radiator (1) at retaining frame (2) | ||
| 3 | Check low temperature water circuit radiator (1) for damage, replace if necessary | ||
| 4 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 5 | Perform an Engine test run and check Engine cooling system for proper operation |
