Remove/Install Low Temperature Cooler - AR09.41-P-6831MNJ
Engine 178.9 in model 190.381
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. | AS20.00-Z-0001-01A | |
| Wear protective gloves, protective clothing and safety glasses. | |||
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove radiator unit and place onto suitable base. | AR20.20-P-3871MNJ | |

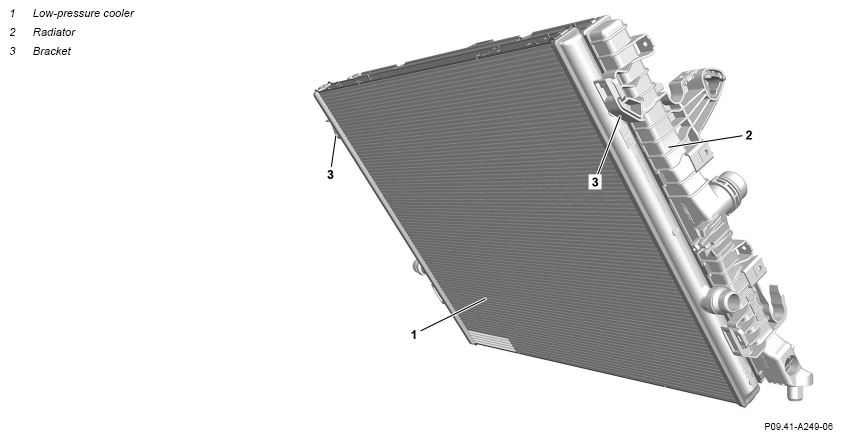

| 2 | Unclip low temperature cooler (1) from holders (3). | ||
| 3 | Carefully remove low temperature cooler (1) from coolant radiator (2). | Do not twist low temperature cooler (1) or knock it against coolant radiator (2). Otherwise leaks and damage can occur. |
|
| Check | |||
| 4 | Check low temperature cooler (1) for damage. | If there is a problem, ↓ Replace low temperature cooler (1). |
|
| 5 | Install in the reverse order. |
