Remove/Install Boost Pressure Sensor Upstream Of Throttle Valve - AR09.41-P-0003MNB
Engine 178 in model 190

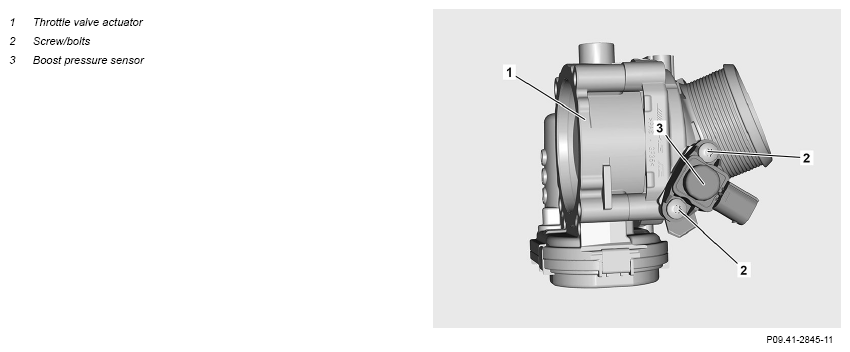

Fig 1: Boost Pressure Sensor Upstream Of Throttle Valve Components Location - Engine 178 In Model 190
| Remove/install | |||
| 1.1 | Remove left throttle valve actuator (1) | When removing the left boost pressure sensor (3) | AR09.41-P-1330MNB |
| 1.2 | Remove right throttle valve actuator (1) | When removing the right boost pressure sensor (3) | AR09.41-P-1330MNB |
| 2 | Remove screw/bolts (2) | *BA09.41-P-1005-01X | |
| 3 | Remove left boost pressure sensor (3) or right boost pressure sensor (3) | ||
| Check | |||
| 4 | Check O-ring of left boost pressure sensor (3) or right boost pressure sensor (3) for damage | In case of damage on the O-ring ↓ Remove left boost pressure sensor (3) or right boost pressure sensor (3) |
|
| 5 | Install in the reverse order | ||
| 6 | Connect diagnostic system and read out fault memory | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an Engine test run and check Engine for proper operation and leaktightness |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 178 | |
|---|---|---|---|
| BA09.41-P-1005-01X | Screw/bolt, boost pressure sensor upstream/downstream of throttle valve | Nm | 6 |
