Remove/Install Start/Stop Button - AR54.25-P-4001RG
Model 190
as of model year 2019
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove driver's side cover (1) at side from center console. | AR68.20-P-2355RG | |

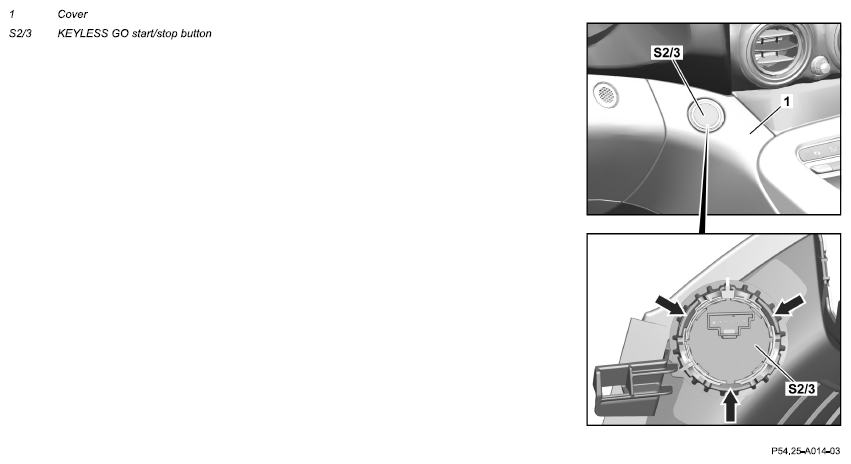

| 3 | Unclip KEYLESS-GO start/stop button (S2/3) from catch hooks (arrows) and remove. | ||
| 4 | Install in the reverse order. |
