Remove/Install Front Pre-Fuse Box - AR54.15-P-1330RG

Model 190

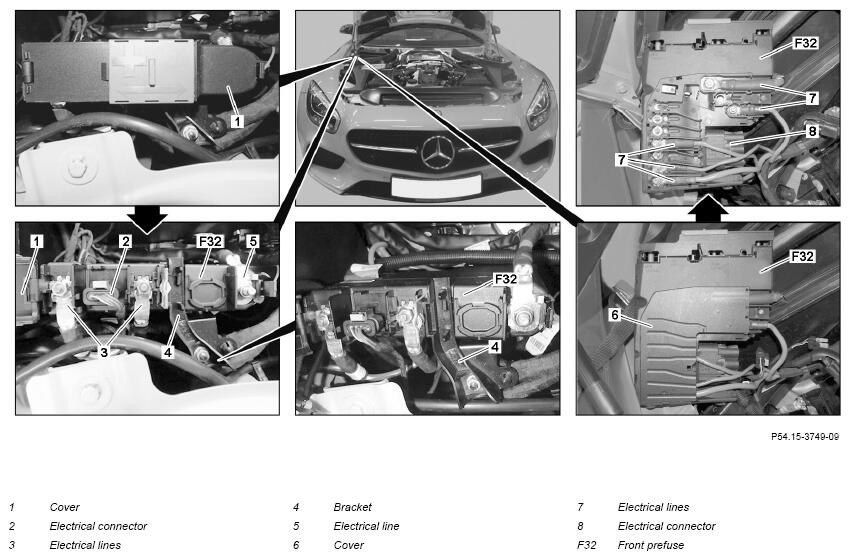

Fig 1: Front Pre-Fuse Box Components Location - Model 190

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove on-board electrical system battery (G1)		AR54.10-P-0005RG
2	Open cover (1) of front Pre-Fuse box (F32)
3	Disconnect electrical connector (2)
4	Remove electrical lines (3, 5)	: The electrical lines (3, 5) are mechanically coded.
		Nut, positive battery cable to Pre-Fuse box	*BA54.15-P-1001-01G
5	Detach and remove bracket (4) of front Pre-Fuse box (F32)	: First position front Pre-Fuse box (F32), then install bracket (4).
6	Unclip cover (6) of front Pre-Fuse box (F32)
7	Remove electrical lines (7)	: The electrical lines (7) are mechanically coded.
		Nut, positive battery cable to Pre-Fuse box	*BA54.15-P-1001-01G
8	Disconnect electrical connector (8)
9	Remove Pre-Fuse box at front (F32)
10	Install in the reverse order

FUSE AND RELAY BOX

Number	Designation			MODEL 190
BA54.15-P-1001-01G	Nut, positive battery cable to Pre-Fuse box	M6	Nm	8
		M8	Nm	16
