Remove/Install Front Camera - AR54.65-P-0014RG
Model 190
With Code 203 (Front camera)

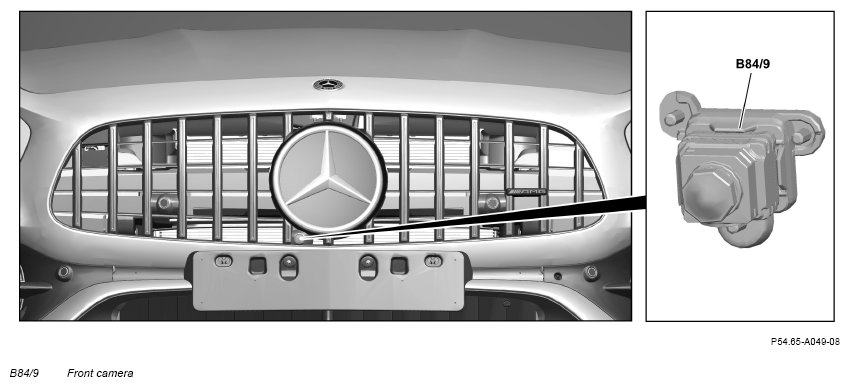

Shown on removed bumper
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove front bumper. | AR88.20-P-2000RG | |

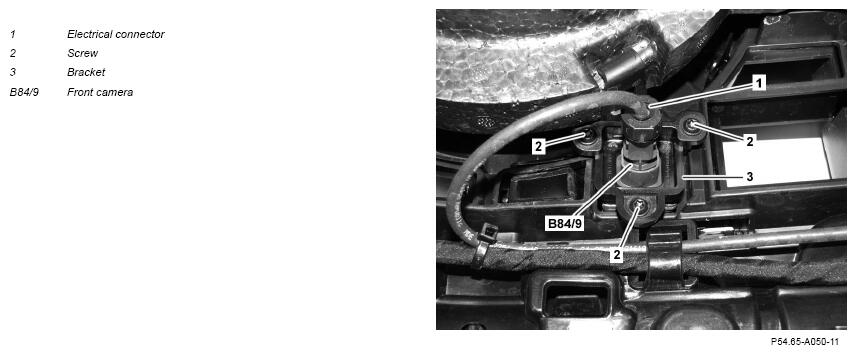

| 3 | Disconnect electrical connector (1) of front camera (B84/9). | ||
| 4 | Remove bolts (2). | ||
| 5 | Remove front camera (B84/9) together with holder (3) from bumper. | ||
| 6 | Remove front camera (B84/9) from holder (3). | ||
| 7 | Install in the reverse order. | ||
| 8 | Calibrate front camera (B84/9). | ||
| AD00.00-P-2000-04B |
