Remove/Install Cigarette Lighter - AR54.10-P-0030RG

Model 190

With Code 301 (Package SMOKER)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition, remove transmitter key if necessary and place transmitter key down outside of KEYLESS-GO transmission range

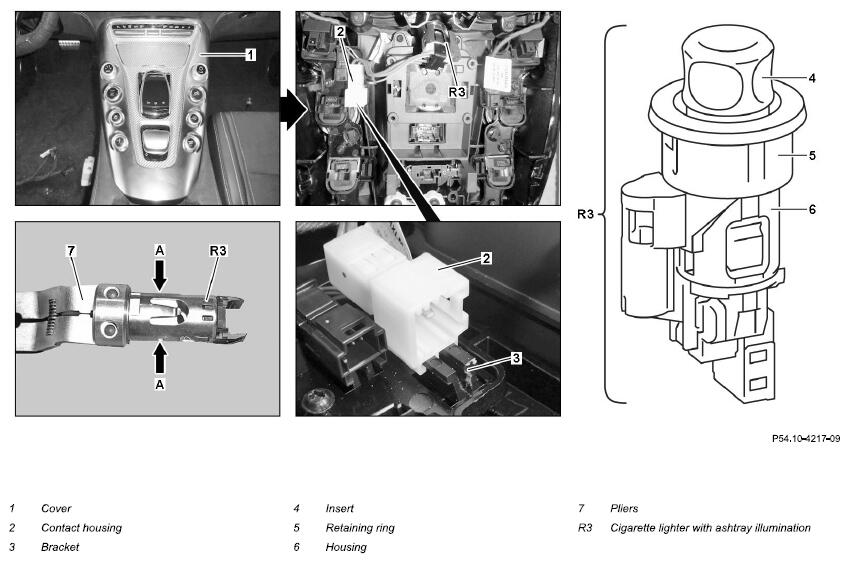

2	Remove cover (1) on center console		AR68.20-P-2350RG
		Mounting wedge	Fig 1
3	Release contact housing (2) from bracket (3)
4	Remove insert (4) from housing (6)
5	Release cigarette lighter with ashtray illumination (R3) using pliers (7) and pull out together with retaining collar (5)	The studs of the pliers (7) must engage in the recesses of the housing (6) on the cigarette lighter with ashtray illumination (R3) (arrows A). : Make sure retaining ring (5) is in correct installation position.
		Pliers	Fig 2
6	Install in the reverse order

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
