Remove/Install Backup Camera - AR54.65-P-0030RG
Model 190
With Code 218 (Rear view camera)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||

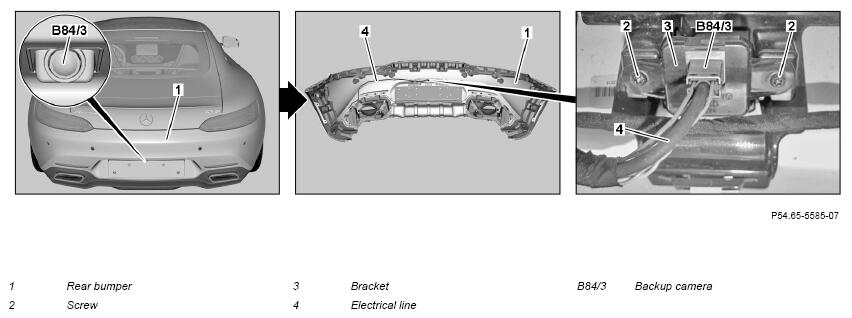

| 2 | Remove rear bumper (1) | AR88.20-P-2200RG | |
| 3 | Expose electrical line (4) and disconnect | ||
| 4 | Unscrew screws/bolts (2) | ||
| 5 | Remove bracket (3) | ||
| 6 | Remove reversing camera (B84/3) | ||
| 7 | Install in the reverse order | ||
| 8 | Initialize reversing camera (B84/3) using the diagnostic system | If the reversing camera (B84/3) was replaced. | |
| AD00.00-P-2000-04B |
