Remove/Install Additional Fan For Instrument Cluster - AR54.30-P-0003RG
Model 190
as of model year 2019

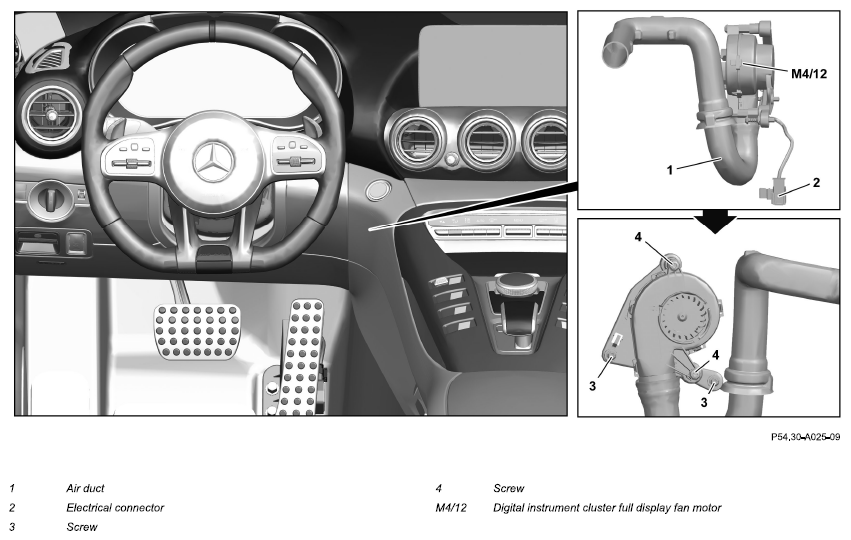

Fig 1: Additional Fan For Instrument Cluster Components Location - Model 190 As Of Model Year 2019 (Shown On Model 190.### 1#)
Shown on model 190.### 1#
Shown on model 190.### 1#

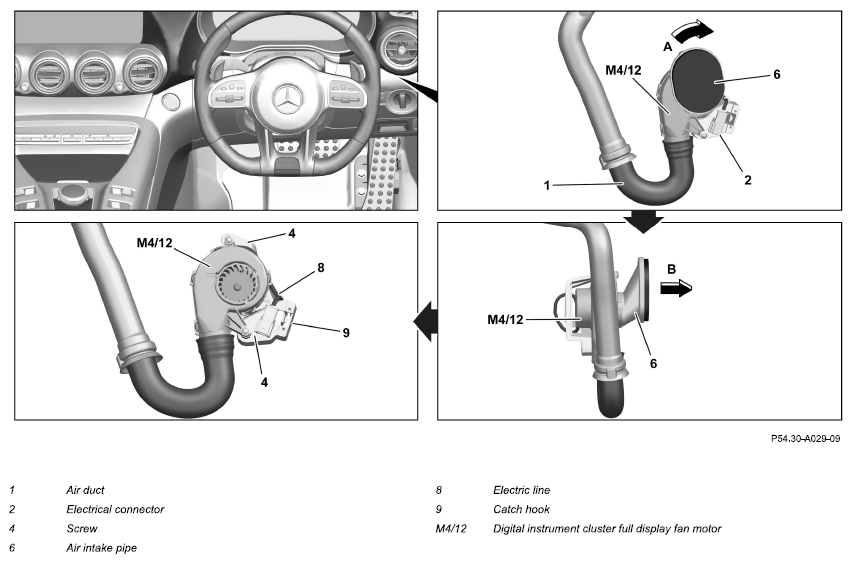

Shown on model 190.### 2#
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove trim at bottom for instrument panel on driver's side. | AR68.10-P-1501RQ | |
| 3 | Remove expansion rivet (5). | Model 190.### 1# as of model year 2019 |
|

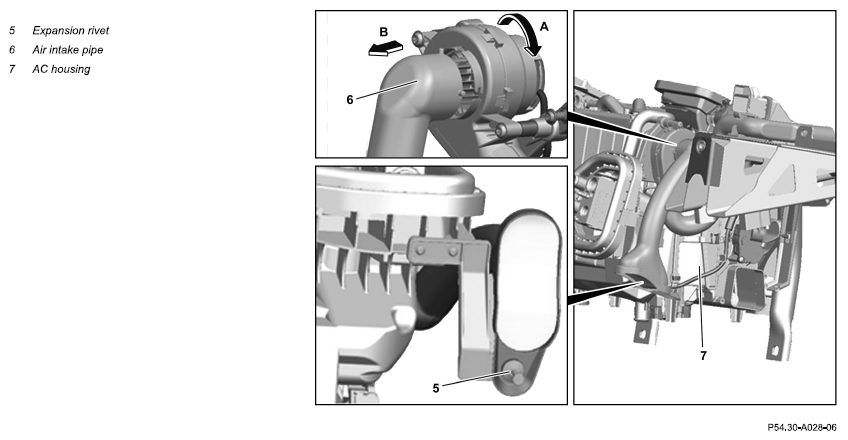

| Fig 2 | |||
| 4 | Turn air intake pipe (6) (arrow A) and remove from digital instrument cluster full display fan motor (M4/12) (arrow B). | ||
| 5 | Detach air duct (1) from full display digital instrument cluster fan motor (M4/12). | ||
| 6.1 | Disconnect electrical connector (2) and remove from air conditioner housing (7). | Model 190.### 1# as of model year 2019 |
|
| 6.2 | Disconnect electrical connector (2) and unhook electric line (8). | Model 190.### 2# as of model year 2019 |
|
| 7.1 | Unscrew screws (3) and remove digital instrument cluster full display fan motor (M4/12) with holder from air conditioner housing (7). | Model 190.### 1# as of model year 2019 |
|
| 7.2 | Release catch hook (9) and take out digital instrument cluster full display fan motor (M4/12) with holder. | Model 190.### 2# as of model year 2019 |
|
| 8 | Remove screws (4) and remove full display digital instrument cluster fan motor (M4/12) from holder. | When replacing digital instrument cluster full display fan motor (M4/12). |
|
| 9 | Install in the reverse order. |
