Remove/Install AMG Gateway Control Unit - AR54.21-P-0000RG
Model 190
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Commission AMG gateway control unit (N93/9). | When replacing AMG gateway control unit (N93/9). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove trim at bottom for instrument panel on driver's side. | AR68.10-P-1501RQ | |

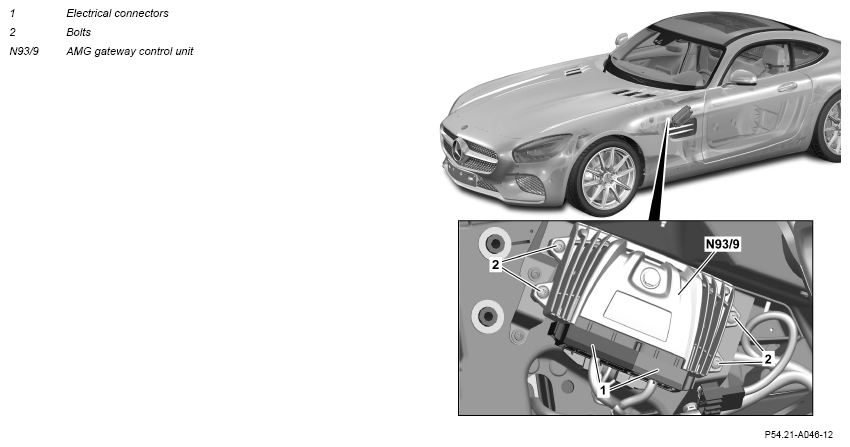

| 4 | Disconnect electrical connectors (1) from AMG gateway control unit (N93/9). | ||
| 5 | Unscrew screws (2) and remove AMG gateway control unit (N93/9). | ||
| 6 | Install in the reverse order. |
