Remove/Install Telephone Antenna - AR82.62-P-0011RG

Model 190

With Code 348 (Emergency call/assistant system)

Model 190

With Code 360 (HERMES UMTS)

Model 190

With Code 362 (HERMES communications module LTE)

Model 190

With Code 380 (Car telephony package)

Model 190

With Code 386 (Comfort telephony)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

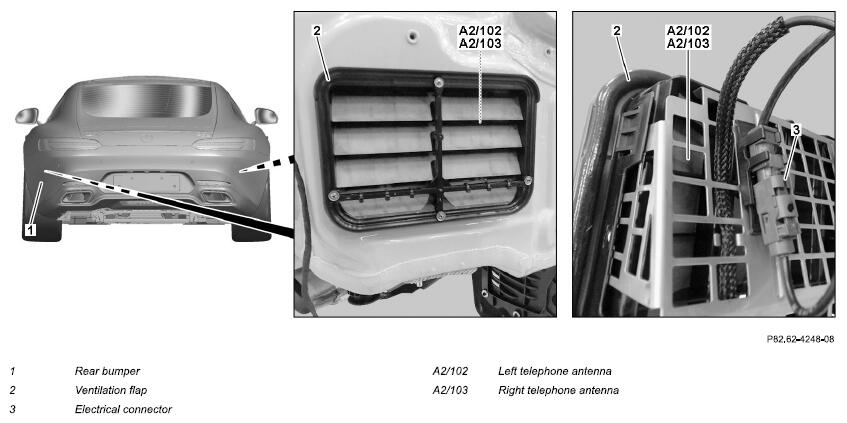

1	Remove rear bumper (1).		AR88.20-P-2200RG
2	Unclip ventilation flap (2).	Long wedge	Fig 1
3	Disconnect electrical connector (3).
4	Remove ventilation flap (2) together with left telephone antenna (A2/102) or right telephone antenna (A2/103).
5	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
