Remove/Install Subwoofer Amplifier - AR82.62-P-7722RG
Model 190
as of model year 2016
With Code 811 (High-End sound system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | Model 190 as of model year 2016 with code 811 (High-End sound system) with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Remove subwoofer | AR82.62-P-7841RG | |

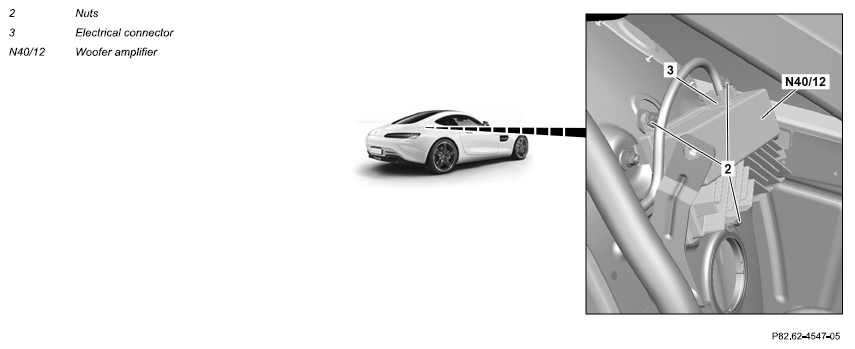

| 2 | Release and disconnect electrical connection (3) | ||
| 3 | Unscrew nuts (2) | ||
| 4 | Remove woofer amplifier (N40/12) | ||
| 5 | Install in the reverse order |
