Remove/Install Satellite Radio Antenna - AR82.60-P-7547RG
Model 190.3
With Code 536 (Sirius satellite radio complete system)
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||

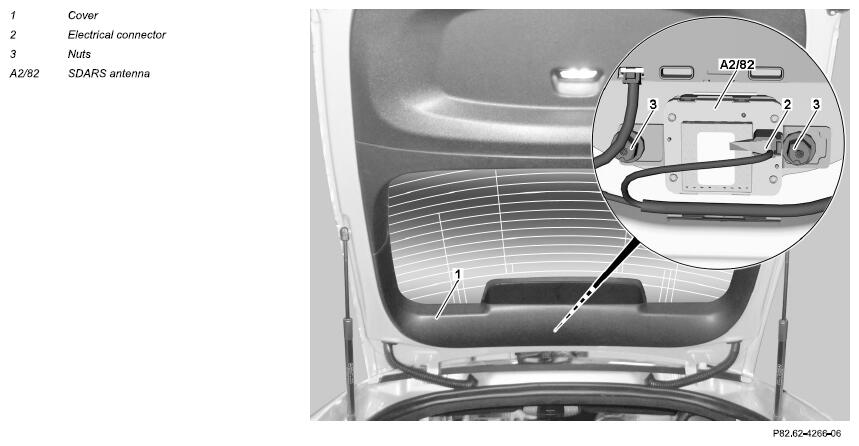

| 2 | Remove inner paneling (1) from window frame at top of liftgate | AR72.20-P-1015RG | |
| 3 | Release and disconnect electrical connection (2) | ||
| 4 | Unscrew nuts (3) | ||
| 5 | Remove SDARS antenna (A2/82) | ||
| 6 | Install in the reverse order |
