Remove/Install Right Footwell Bass Speaker - AR82.62-P-7821RG

Model 190

Courtesy of MERCEDES-BENZ USA

	Remove/install

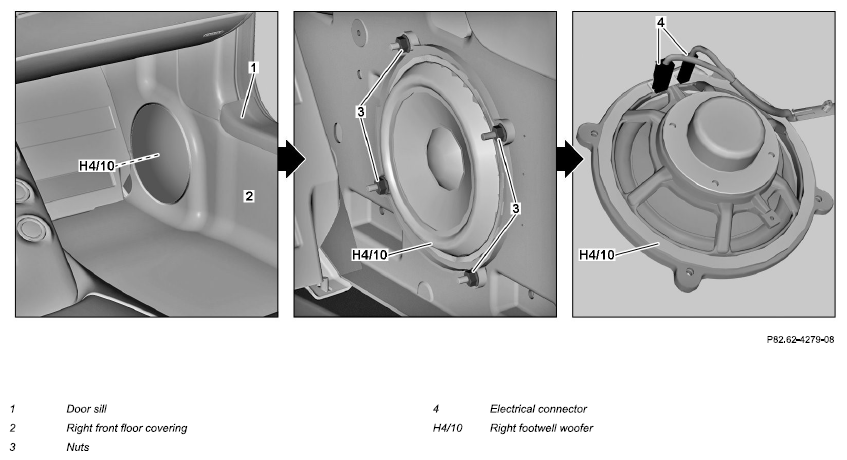

1	Remove right door sill (1)		AR68.30-P-4100RG
2	Detach right front floor covering (2) in area of right footwell woofer (H4/10) and fold sidewards		AR68.20-P-2070RG
		Do not remove right front floor covering (2).
3	Remove nuts (3) from right footwell woofer (H4/10)
4	Disconnect electrical connections (4)
5	Remove right footwell woofer (H4/10)
6	Install in the reverse order
