Remove/Install Radio Antenna Amplifier - AR82.62-P-8306RGR
Model 190.4
| Topical note | Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||

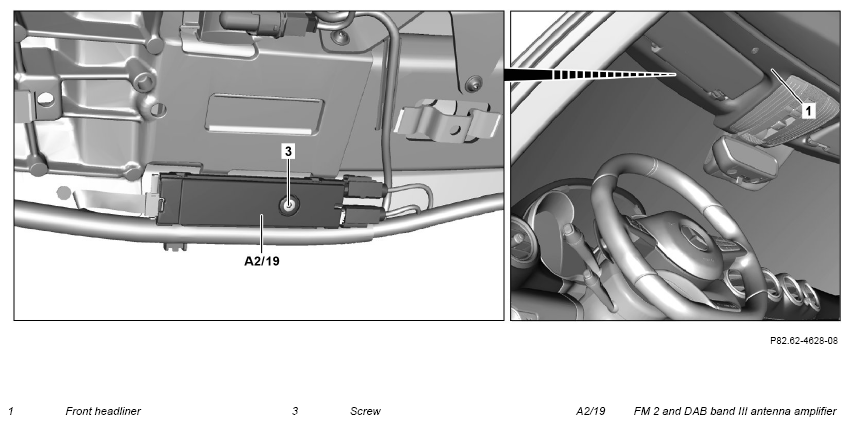

| 2 | Remove front headliner (1) | AR68.30-P-7607RGR | |
| 3 | Release and disconnect electrical connector at FM 2 and DAB Band III antenna amplifier (A2/19) | ||
| 4 | Unscrew bolt (3) | ||
| 5 | Unclip FM 2 and DAB Band III antenna amplifier (A2/19) with a suitable tool | ||
| 6 | Install in the reverse order |
