Remove/Install Radio Antenna Amplifier - AR82.62-P-8306RG
Model 190.3
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||

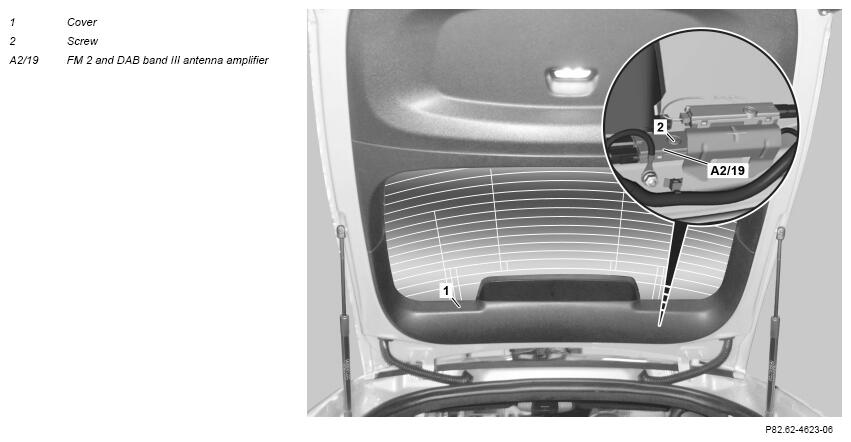

| 2 | Unclip inner trim (1) from window frame of tailgate | AR72.20-P-6445RG | |
| 3 | Release and disconnect electrical connectors from FM 2 and DAB Band III antenna amplifier (A2/19) | ||
| 4 | Unscrew bolt (2) | ||
| 5 | Unclip FM 2 and DAB Band III antenna amplifier (A2/19) using suitable tool | ||
| 6 | Install in the reverse order |
